9271 006500

Active

Belden Inc.

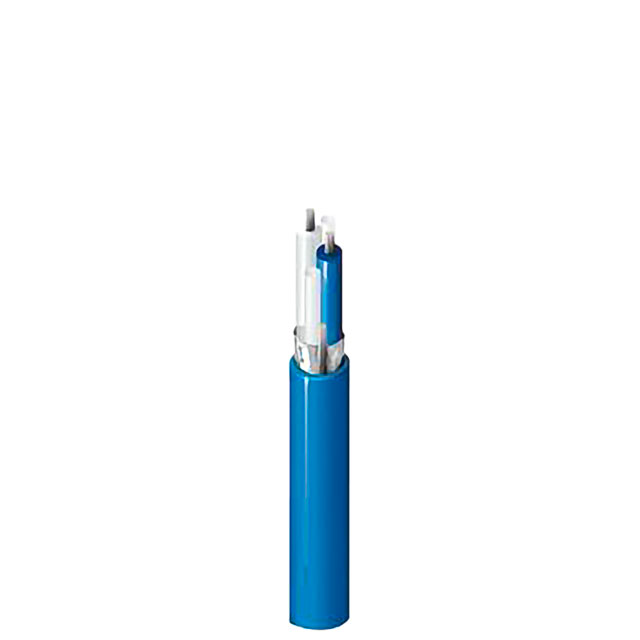

TWINAX 25AWG 124 OHM

Search across all available documentation for this part.

Active

Belden Inc.

TWINAX 25AWG 124 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	9271 006500

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	33 AWG
Features	22 AWG
Impedance	124 Ohms
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	25 AWG

Part	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Type	Jacket (Insulation) Material	Impedance	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Shield Material	Conductor Material	Wire Gauge	Length [x]	Length [x]
Belden Inc. 9271 006500	152.4 m	6000 in	-20 C	60 °C	100 %	Foil	Poly-Vinyl Chloride (PVC)	124 Ohms	22 AWG	7	33 AWG	0.24 in	6.1 mm	Twinaxial	Blue	Aluminum	Copper Tinned	25 AWG
Belden Inc. 9271 006100			-20 C	60 °C	100 %	Foil	Poly-Vinyl Chloride (PVC)	124 Ohms	22 AWG	7	33 AWG	0.24 in	6.1 mm	Twinaxial	Blue	Aluminum	Copper Tinned	25 AWG	100 ft	30.48 m
Belden Inc. 9271 0061000	304.8 m	1000 ft	-20 C	60 °C	100 %	Foil	Poly-Vinyl Chloride (PVC)	124 Ohms	22 AWG	7	33 AWG	0.24 in	6.1 mm	Twinaxial	Blue	Aluminum	Copper Tinned	25 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.61

General part information

Twinaxial Cable 25 AWG 500.0' (152.40m) 124 Ohms
