TMMS-130-01-F-Q-RA-FS

Active

Samtec Inc.

CONN HEADER R/A 120P 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +2

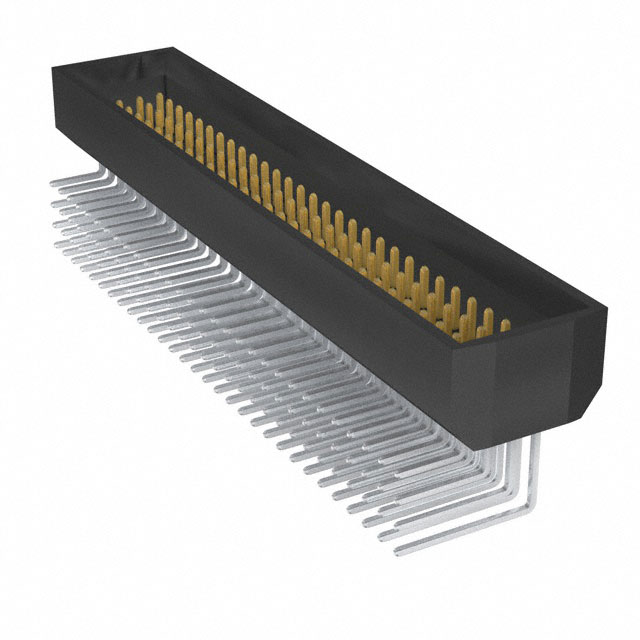

TMMS-130-01-F-Q-RA-FS

Active

Samtec Inc.

CONN HEADER R/A 120P 2MM

Deep-Dive with AI

DocumentsDatasheet 2.00 mm Shrouded Terminal Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMS-130-01-F-Q-RA-FS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	12.07 mm
Insulation Height [z]	0.475 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TMMS-130 Series

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Material	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Positions	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Height	Insulation Height	Contact Type	Termination	Insulation Height [z]
Samtec Inc. TMMS-130-01-LM-Q-FS	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.113 in	2.87 mm	Through Hole	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square	0.302 in	7.67 mm	120	All	Header	10 çin	0.25 çm	Phosphor Bronze	0.299 in	7.6 mm	Male Pin	Solder
Samtec Inc. TMMS-130-01-F-Q-FS	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.113 in	2.87 mm	Through Hole	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square	0.302 in	7.67 mm	120	All	Header	3 µin	0.076 µm	Phosphor Bronze	0.299 in	7.6 mm	Male Pin	Solder
Samtec Inc. TMMS-130-01-SM-Q	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.113 in	2.87 mm	Through Hole	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square	0.302 in	7.67 mm	120	All	Header	30 Áin	0.76 Ám	Phosphor Bronze	0.299 in	7.6 mm	Male Pin	Solder
Samtec Inc. TMMS-130-01-F-Q-RA-FS	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.09 "	2.29 mm	Through Hole Right Angle	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square			120	All	Header	3 µin	0.076 µm	Phosphor Bronze		12.07 mm	Male Pin	Solder	0.475 in
Samtec Inc. TMMS-130-01-S-Q	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.113 in	2.87 mm	Through Hole	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square	0.302 in	7.67 mm	120	All	Header	30 Áin	0.76 Ám	Phosphor Bronze	0.299 in	7.6 mm	Male Pin	Solder
Samtec Inc. TMMS-130-01-F-Q-RA	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.09 "	2.29 mm	Through Hole Right Angle	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square			120	All	Header	3 µin	0.076 µm	Phosphor Bronze		12.07 mm	Male Pin	Solder	0.475 in
Samtec Inc. TMMS-130-01-L-Q-FS	0.079 in	2 mm	Gold	Push-Pull	UL94 V-0	Shrouded - 4 Wall	-55 °C	125 °C	0.113 in	2.87 mm	Through Hole	0.13 in	3.3 mm	Tin	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	Square	0.302 in	7.67 mm	120	All	Header	10 çin	0.25 çm	Phosphor Bronze	0.299 in	7.6 mm	Male Pin	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.53
		10	$ 13.75
		25	$ 13.24
		50	$ 12.91
		100	$ 12.04

TMMS-130-01-F-Q-RA-FS

Deep-Dive with AI

TMMS-130-01-F-Q-RA-FS

Deep-Dive with AI

Technical Specifications

TMMS-130 Series

Pricing

Description

TMMS-130 Series

Documents

Datasheet

2.00 mm Shrouded Terminal Strip

TMMS Datasheet

2.00 mm Fully Shrouded Quad Row Terminal Strip

TMMS-130 Series
