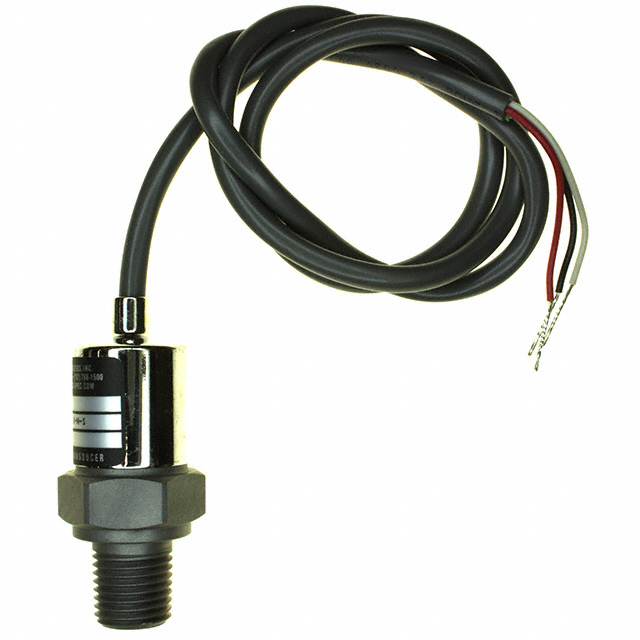

M3031-000005-2K5PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER .5-4.5VDC 2500# PRES

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER .5-4.5VDC 2500# PRES

Technical Specifications

Parameters and characteristics for this part

Specification	M3031-000005-2K5PG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	5000 PSI
Maximum Pressure [Max]	34473.79 kPa
Operating Pressure	2500 PSI
Operating Pressure	17236.89 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Accuracy	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Applications	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Port Style	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties M3031-000005-2K5PG	1 %	Vented Gauge	85 °C	-20 C	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	Amplified Output Temperature Compensated	4.75 V	5.25 V	Cable	Threaded	0.5 V	4.5 V	2500 PSI	17236.89 kPa	Analog Voltage	5000 PSI	34473.79 kPa
TE Connectivity Measurement Specialties M3031-000005-01KPG	1 %	Vented Gauge	85 °C	-20 C	Cylinder Threaded	NPT	0.25 "	6.35 mm	Male	Industrial Automation	Amplified Output Temperature Compensated	4.75 V	5.25 V	Cable	Threaded	0.5 V	4.5 V	1000 PSI	6894.76 kPa	Analog Voltage	2000 PSI	13789.51 kPa
TE Connectivity Measurement Specialties M3031-000005-500PG	1 %	Vented Gauge	85 °C	-20 C	Cylinder Threaded	NPT	0.25 "	6.35 mm	Male		Amplified Output Temperature Compensated	4.75 V	5.25 V	Cable	Threaded	0.5 V	4.5 V	500 PSI	3447.38 kPa	Analog Voltage	1000 PSI	6894.76 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRANSDUCER .5-4.5VDC 2500# PRES
