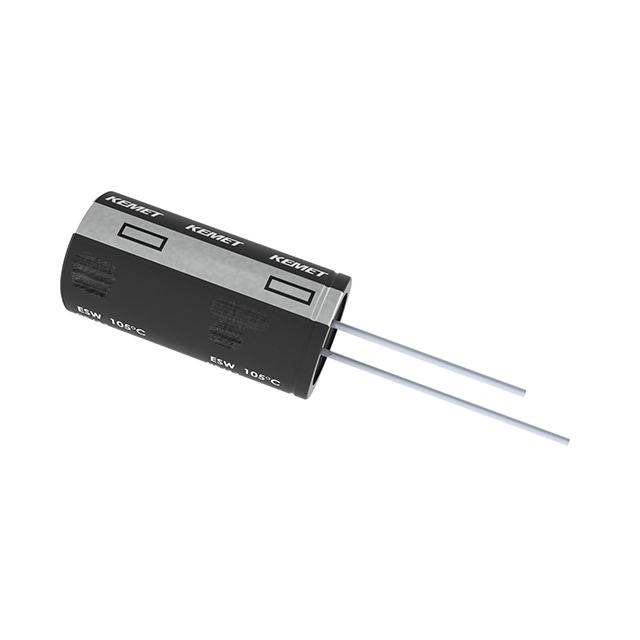

ESW106M025AC3AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 25V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 25V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	ESW106M025AC3AA

Applications	General Purpose
Capacitance	10 µF
ESR (Equivalent Series Resistance)	600 mOhm
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	2 mm
Lead Spacing	0.079 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Capacitance	Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Voltage - Rated	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Applications
KEMET ESW106M025AC3AA	10 µF	20 %	Through Hole	0.492 in	12.5 mm	Radial Can	5 mm	0.197 "	Polar	25 VDC	600 mOhm	-40 °C	105 ░C	2 mm	0.079 in	General Purpose
KEMET ESW106M016AC3FA	10 µF	20 %	Through Hole	0.492 in	12.5 mm	Radial Can	5 mm	0.197 "	Polar	16 V	600 mOhm	-40 °C	105 ░C	2 mm	0.079 in	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 600mOhm @ 100kHz
