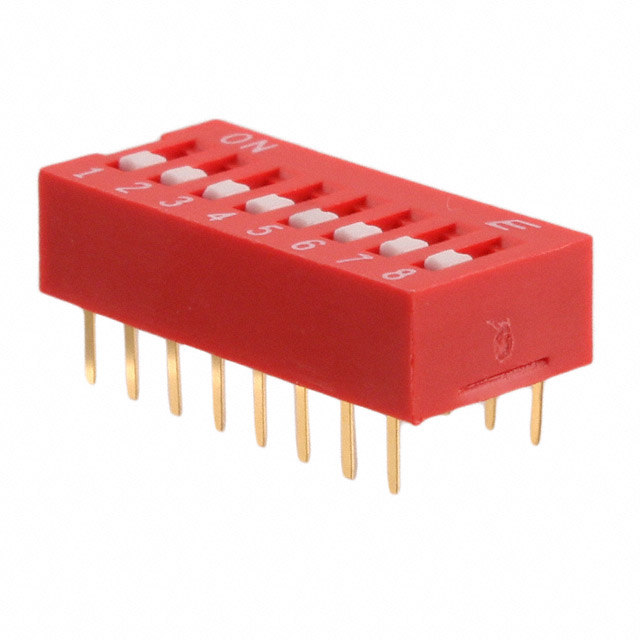

KAS1108RT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

KAS1108RT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KAS1108RT

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Features	Tape Seal
Height Above Board	6 mm
Height Above Board	0.236 in
Length	21.7 mm
Length	0.854 in
Mechanical Life	2000 Cycles
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

KAS2105 Series

Part	Mechanical Life	Actuator Type	Current Rating (Amps)	Number of Positions	Voltage Rating	Features	Length	Length	Pitch [x]	Pitch	Pitch [x]	Actuator Level	Mounting Type	Height Above Board	Height Above Board	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Body Material	Contact Material	Circuit	Termination Style	Height Above Board
E-Switch KAS1112ET	2000 Cycles	Slide (Standard)	25 mA	12	24 VDC	Tape Seal	1.254 "	31.84 mm	0.1 in	Full	2.54 mm	Raised	Through Hole	0.275 in	6.99 mm	2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin
E-Switch KAS1102E	2000 Cycles	Slide (Standard)	25 mA	2	24 VDC		0.254 in	6.44 mm	0.1 in	Full	2.54 mm	Raised	Through Hole	0.275 in	6.99 mm	2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin
E-Switch KAS1108RT	2000 Cycles	Slide (Standard)	25 mA	8	24 VDC	Tape Seal	0.854 in	21.7 mm	0.1 in	Full	2.54 mm	Flush Recessed	Through Hole	6 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.236 in
E-Switch KAS1108R	2000 Cycles	Slide (Standard)	25 mA	8	24 VDC		0.854 in	21.7 mm	0.1 in	Full	2.54 mm	Flush Recessed	Through Hole	6 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.236 in
E-Switch KAS2102E	2000 Cycles	Slide (Standard)	25 mA	2	24 VDC		0.254 in	6.44 mm	0.1 in	Full	2.54 mm	Raised	Through Hole Right Angle	9.9 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.39 in
E-Switch KAS1102ET	2000 Cycles	Slide (Standard)	25 mA	2	24 VDC	Tape Seal	0.254 in	6.44 mm	0.1 in	Full	2.54 mm	Raised	Through Hole	0.275 in	6.99 mm	2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin
E-Switch KAS2105E	2000 Cycles	Slide (Standard)	25 mA		24 VDC		0.554 "	14.06 mm	0.1 in	Full	2.54 mm	Raised	Through Hole Right Angle	9.9 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.39 in
E-Switch KAS1112E	2000 Cycles	Slide (Standard)	25 mA	12	24 VDC		1.254 "	31.84 mm	0.1 in	Full	2.54 mm	Raised	Through Hole	0.275 in	6.99 mm	2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin
E-Switch KAS2104ET	2000 Cycles	Slide (Standard)	25 mA	4	24 VDC	Tape Seal	0.454 in	11.52 mm	0.1 in	Full	2.54 mm	Raised	Through Hole Right Angle	9.9 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.39 in
E-Switch KAS2102ET	2000 Cycles	Slide (Standard)	25 mA	2	24 VDC	Tape Seal	0.254 in	6.44 mm	0.1 in	Full	2.54 mm	Raised	Through Hole Right Angle	9.9 mm		2000 Steps	85 °C	-40 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	SPST	PC Pin	0.39 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.33
		21	$ 1.30
		42	$ 1.18
		105	$ 1.02
		252	$ 0.94

Description

General part information

KAS2105 Series

Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

No documents available
