SSM-113-S-DV

Unknown

Samtec Inc.

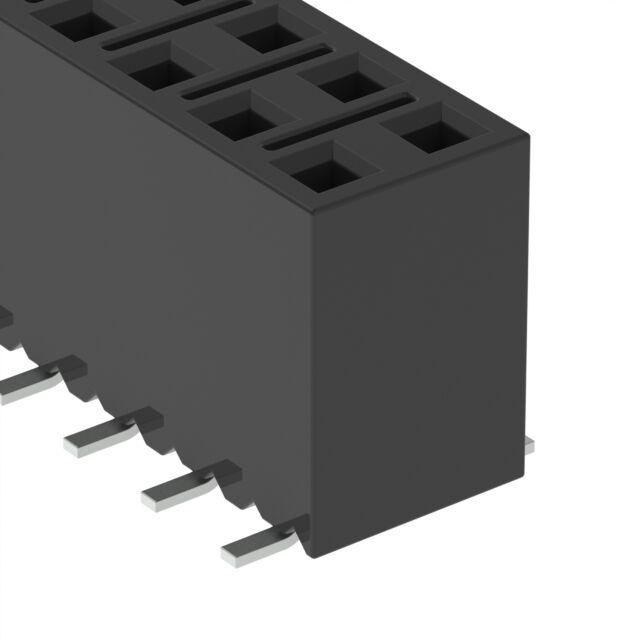

CONN RCPT 26POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSSM Catalog Datasheet

SSM-113-S-DV

Unknown

Samtec Inc.

CONN RCPT 26POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsSSM Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-113-S-DV

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

SSM-113 Series

Headers & Wire Housings Surface Mount PCB Socket Strips, .100" pitch

Part	Number of Rows	Features	Connector Type	Mounting Type	Insulation Material	Voltage Rating	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Material	Insulation Color	Contact Finish - Mating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Contact Shape	Contact Type	Insulation Height	Insulation Height
Samtec Inc. SSM-113-LM-DV-BE-K	2	Pick and Place	Receptacle Bottom Entry	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-SM-DV-A	2	Board Guide	Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	30 Áin	0.76 Ám	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-S-SV-P	1	Pick and Place	Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	30 Áin	0.76 Ám	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull			0.1 in	2.54 mm	13	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-S-DV-BE-LC-K-TR	2	Board Lock Pick and Place	Receptacle Bottom Entry	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	30 Áin	0.76 Ám	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-L-DV-K-TR	2	Pick and Place	Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-S-DV	2		Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	30 Áin	0.76 Ám	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-L-DV-BE-K	2	Pick and Place	Receptacle Bottom Entry	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-S-SV-LC	1		Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	30 Áin	0.76 Ám	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull			0.1 in	2.54 mm	13	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-LM-DV-LC	2		Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	26	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
Samtec Inc. SSM-113-L-SV-LC	1		Pass Through Receptacle	Surface Mount	Liquid Crystal Polymer (LCP)	405 VAC 572 VDC	Solder	5.2 A	10 çin	0.25 çm	Board to Board Cable	Phosphor Bronze	Black	Gold	Push-Pull			0.1 in	2.54 mm	13	-55 °C	125 °C	Tin	All	Square	Female Socket	7.37 mm	0.29 in
