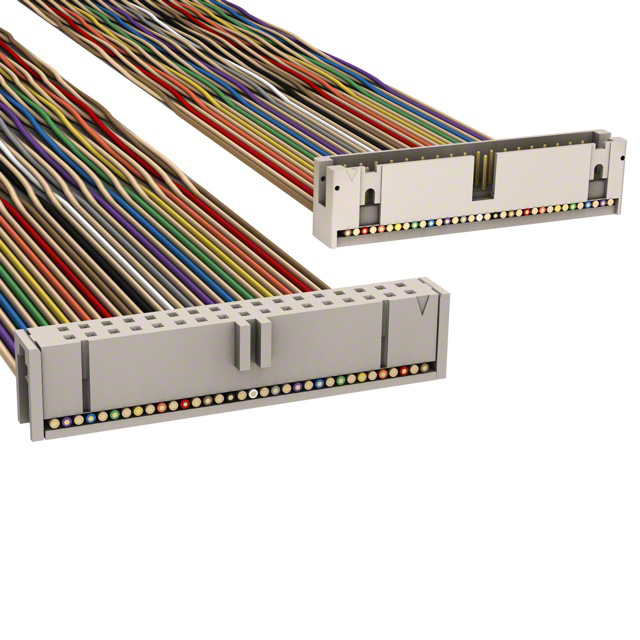

M3CKK-3460K

Active

3M (TC)

IDC CABLE - MKC34K/MC34F/MPK34K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Datasheet +1

M3CKK-3460K

Active

3M (TC)

IDC CABLE - MKC34K/MC34F/MPK34K

Deep-Dive with AI

Documents1700 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3CKK-3460K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	1.52 m
Length	5 '
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3CKK Series

Part	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Number of Rows	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Length	Length	Length	Pitch - Cable	Pitch - Cable	Number of Positions	Connector Type	Length [x]	Length [x]	Color	Length	Number of Positions
3M (TC) M3CKK-2406J	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	24	Socket to Plug
3M (TC) M3CKK-2418J	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key				0.05 "	1.27 mm	24	Socket to Plug	457.2 mm	1.5 ft
3M (TC) M3CKK-3460K	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	1.52 m			0.05 "	1.27 mm	34	Socket to Plug			Multiple Twisted Pair (Flat)	5 '
3M (TC) M3CKK-5036R	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key				0.05 "	1.27 mm	50	Socket to Plug	914.4 mm	3 ft	Multiple Ribbon
3M (TC) M3CKK-3406R	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	34	Socket to Plug			Multiple Ribbon
3M (TC) M3CKK-5020K	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	508 mm			0.05 "	1.27 mm	50	Socket to Plug			Multiple Twisted Pair (Flat)	1.67 ft
3M (TC) M3CKK-1006R	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	10	Socket to Plug			Multiple Ribbon
3M (TC) M3CKK-3006J	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	30	Socket to Plug
3M (TC) M3CKK-2060K	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key	1.52 m			0.05 "	1.27 mm	20	Socket to Plug			Multiple Twisted Pair (Flat)	5 '
3M (TC) M3CKK-1618J	Gold	0.1 in	2.54 mm	Unshielded	2	IDC	0.76 Ám	30 Áin	Polarizing Key				0.05 "	1.27 mm		Socket to Plug	457.2 mm	1.5 ft			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.77
		10	$ 33.09
		25	$ 30.01
		50	$ 27.94
		100	$ 26.06
		250	$ 23.84

Description

General part information

M3CKK Series

34 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
