5-1170-3/4

Active

3M (TC)

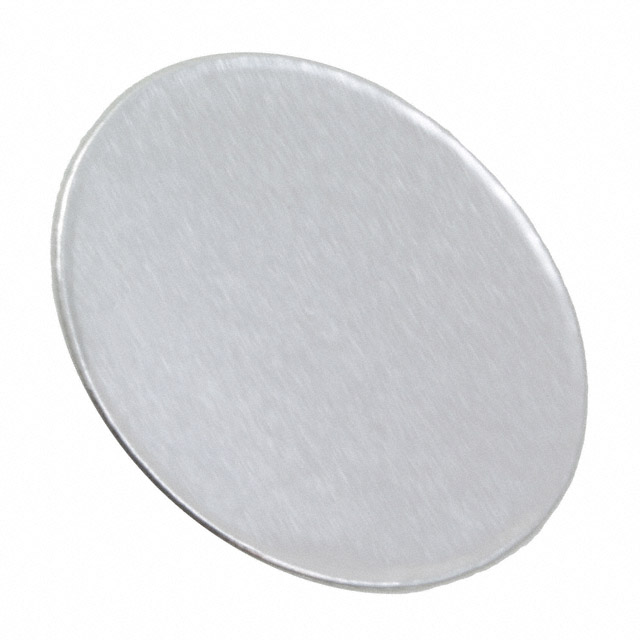

RF EMI SHIELDING SHEET 0.75" 5PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1170-3/4

Active

3M (TC)

RF EMI SHIELDING SHEET 0.75" 5PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1170-3/4

Adhesive	Conductive, Single Sided
Material	Aluminum Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.003 "
Thickness - Overall	0.08 mm
Type	Shielding Sheet
Width	0.75 in
Width	19.1 mm

5-1170 Series

Part	Material	Thickness - Overall	Thickness - Overall	Shelf Life	Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Adhesive	Length	Length	Width	Width	Width [x]	Width [x]
3M (TC) 1170CIR-0.5(5)	Aluminum Foil	0.003 "	0.08 mm	60 Months	Circular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided
3M (TC) 5-1170-3/4-3R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	3 in	76.2 mm	0.75 in	19.1 mm
3M (TC) 5-1170-3/4	Aluminum Foil	0.003 "	0.08 mm	60 Months	Circular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided			0.75 in	19.1 mm
3M (TC) 5-1170-1/2S	Aluminum Foil	0.003 "	0.08 mm	60 Months	Square	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	0.5 in	12.7 mm
3M (TC) 5-1170-1/2-4R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	4 in	101.6 mm
3M (TC) 5-1170-1-2R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	2 in	50.8 mm		25.4 mm	1 in
3M (TC) 5-1170-3/4-2R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	2 in	50.8 mm	0.75 in	19.1 mm
3M (TC) 5-1170-1/2-3R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	3 in	76.2 mm
3M (TC) 1170CIR-2(5)	Aluminum Foil	0.003 "	0.08 mm	60 Months	Circular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided					2 in	50.8 mm
3M (TC) 5-1170-1/2-2R	Aluminum Foil	0.003 "	0.08 mm	60 Months	Rectangular	-40 °C	130 °C	Date of Manufacture	27 °C 80 °F	10 °C	Shielding Sheet	Conductive Single Sided	2 in	50.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 15.25
		10	$ 14.02
		25	$ 13.43
		100	$ 11.84
		250	$ 11.26
		500	$ 10.53
		1000	$ 9.66

Description

General part information

5-1170 Series

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 0.750" (19.10mm) X X 0.003" (0.08mm)
