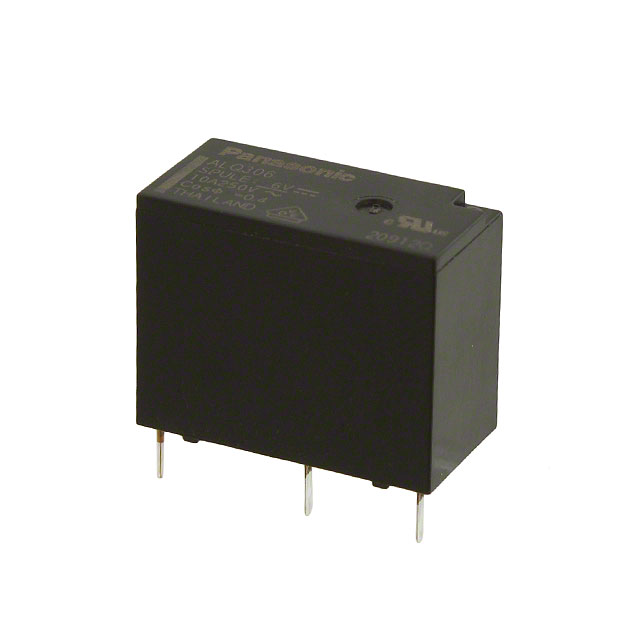

ALQ306

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 6V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 6V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Mounting Type	Relay Type	Coil Current	Coil Insulation	Must Release Voltage	Contact Rating (Current)	Load - Max Switching	Contact Material	Termination Style	Release Time	Switching Voltage [Max]	Coil Resistance	Contact Form	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type	Coil Voltage	Seal Rating
Panasonic Electric Works ALQ306	CQC cURuus VDE	Through Hole	General Purpose	33.3 mA	Class B	0.3 VDC	5 A	150 W 1250 VA	Silver Nickel (AgNi)	PC Pin	20 ms	30 VDC 250 VAC	180 Ohms	SPST-NO (1 Form A)	4.5 VDC	85 °C	-40 °C	20 ms	Non Latching
Panasonic Electric Works ALQ305	CQC cURuus VDE	Through Hole	General Purpose	40 mA	Class B	0.25 VDC	5 A	150 W 1250 VA	Silver Nickel (AgNi)	PC Pin	20 ms	30 VDC 250 VAC	125 Ohms	SPST-NO (1 Form A)	3.75 VDC	85 °C	-40 °C	20 ms	Non Latching	5 VDC
Panasonic Electric Works ALQ306S	CQC cURuus VDE	Through Hole	General Purpose	33.3 mA	Class B	0.3 VDC	5 A	150 W 1250 VA	Silver Nickel (AgNi)	PC Pin	20 ms	30 VDC 250 VAC	180 Ohms	SPST-NO (1 Form A)	4.5 VDC	85 °C	-40 °C	20 ms	Non Latching		Sealed - Fully
Panasonic Electric Works ALQ309S	CQC cURuus VDE	Through Hole	General Purpose	22.2 mA	Class B	0.45 VDC	5 A	150 W 1250 VA	Silver Nickel (AgNi)	PC Pin	20 ms	30 VDC 250 VAC	405 Ohms	SPST-NO (1 Form A)	6.75 VDC	85 °C	-40 °C	20 ms	Non Latching	9 VDC	Sealed - Fully
Panasonic Electric Works ALQ305S	CQC cURuus VDE	Through Hole	General Purpose	40 mA	Class B	0.25 VDC	5 A	150 W 1250 VA	Silver Nickel (AgNi)	PC Pin	20 ms	30 VDC 250 VAC	125 Ohms	SPST-NO (1 Form A)	3.75 VDC	85 °C	-40 °C	20 ms	Non Latching	5 VDC	Sealed - Fully
