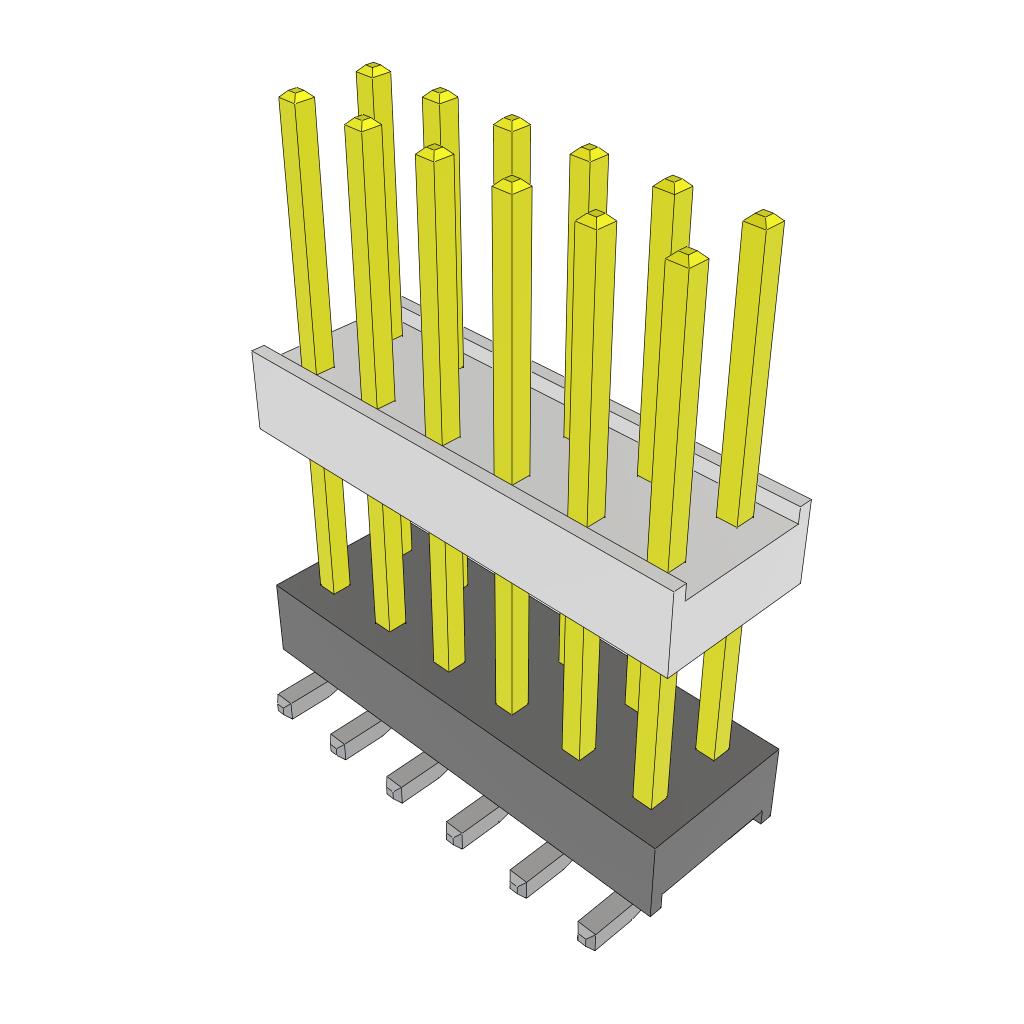

HW-06-10-L-D-472-SM-A

Active

Samtec Inc.

CONN HDR 12POS 0.1 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHW Series Other Related Documents 01 Datasheet +1

HW-06-10-L-D-472-SM-A

Active

Samtec Inc.

CONN HDR 12POS 0.1 STACK SMD

Deep-Dive with AI

DocumentsHW Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-06-10-L-D-472-SM-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	7.442 mm
Length - Post (Mating) [x]	0.293 in
Length - Stack Height [x]	11.989 mm
Length - Stack Height [x]	0.472 in
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-06-10 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Mounting Type	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Termination	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Tail [custom]	Length - Tail [custom]	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail
Samtec Inc. HW-06-10-T-D-555-SM	5.334 mm	0.21 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	14.097 mm	0.555 in	2	Solder	Tin	Black	2.54 mm	0.1 in
Samtec Inc. HW-06-10-L-D-472-SM-A	7.442 mm	0.293 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	11.989 mm	0.472 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.25 Ám	10 Áin
Samtec Inc. HW-06-10-F-D-575-SM	4.826 mm	0.19 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	14.605 mm	0.575 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.076 Ám	3 Áin
Samtec Inc. HW-06-10-F-D-482-SM	7.188 mm	0.283 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	12.243 mm	0.482 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.076 Ám	3 Áin
Samtec Inc. HW-06-10-S-D-575-SM	4.826 mm	0.19 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	14.605 mm	0.575 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.76 µm	30 µin
Samtec Inc. HW-06-10-F-D-299-421	2.794 mm	0.11 in	12	Through Hole	21.082 mm		0.1 in	2.54 mm	7.595 mm	0.299 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.076 Ám	3 Áin	0.83 in	10.693 mm	0.421 "
Samtec Inc. HW-06-10-H-D-435-090	7.747 mm	0.305 in	12	Through Hole	21.082 mm		0.1 in	2.54 mm			2	Solder	Gold	Black	2.54 mm	0.1 in	0.76 µm	30 µin	0.83 in			2.286 mm	0.09 in
Samtec Inc. HW-06-10-G-D-386-222	5.638 mm	0.222 in	12	Through Hole	21.082 mm		0.1 in	2.54 mm			2	Solder	Gold	Black	2.54 mm	0.1 in	0.25 Ám	10 Áin	0.83 in					9.804 mm	0.386 in	5.638 mm	0.222 in
Samtec Inc. HW-06-10-L-D-640-SM-A	3.175 mm	0.125 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm	16.256 mm	0.64 in	2	Solder	Gold	Black	2.54 mm	0.1 in	0.25 Ám	10 Áin
Samtec Inc. HW-06-10-T-D-496-SM	6.833 mm	0.269 in	12	Surface Mount	19.431 mm	0.765 in	0.1 in	2.54 mm			2	Solder	Tin	Black	2.54 mm	0.1 in								12.598 mm	0.496 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	38	$ 2.97
