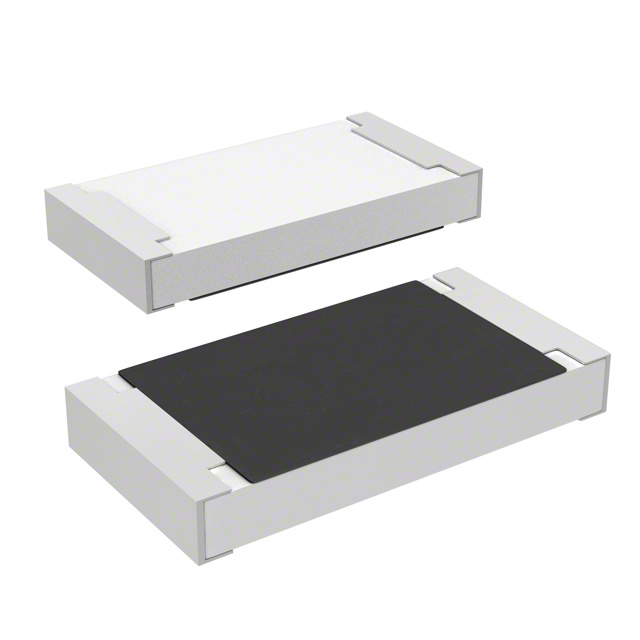

CHV2010-FX-1005ELF

Active

Bourns Inc.

RES SMD 10M OHM 1% 1/2W 2010

Search across all available documentation for this part.

Active

Bourns Inc.

RES SMD 10M OHM 1% 1/2W 2010

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Package / Case	Tolerance	Resistance	Number of Terminations	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. CHV2010-FX-1005ELF	2010	0.5 W	0.5 W	155 °C	-55 °C	100 ppm/°C	2010 (5025 Metric)	1 %	10 MOhms	2	Thick Film	0.7 mm	0.028 in	High Voltage	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CHV2010-FX-2203ELF	2010	0.5 W	0.5 W	155 °C	-55 °C	100 ppm/°C	2010 (5025 Metric)	1 %	220 kOhms	2	Thick Film	0.7 mm	0.028 in	High Voltage	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CHV2010-JW-154ELF	2010	0.5 W	0.5 W	155 °C	-55 °C	200 ppm/°C	2010 (5025 Metric)	5 %	150000 Ohms	2	Thick Film	0.7 mm	0.028 in	High Voltage	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CHV2010-FX-1003ELF	2010	0.5 W	0.5 W	155 °C	-55 °C	100 ppm/°C	2010 (5025 Metric)	1 %	100 kOhms	2	Thick Film	0.7 mm	0.028 in	High Voltage	0.197 in	0.098 in	5 mm	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 MOhms ±1% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) High Voltage Thick Film
