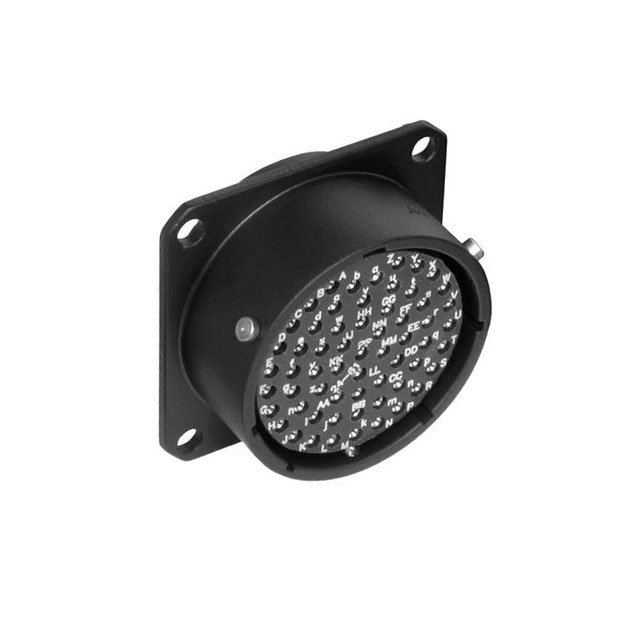

Specification	MP-6212-61S-C

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	Dust Cap
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	61
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Aluminum Die Cast
Shell Size - Insert (Maximum)	61
Shell Size - Insert (Minimum)	24
Termination	Solder Cup

MP6212 Series

Part	Orientation	Mounting Feature	Mounting Type	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Primary Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions	Connector Type	Termination	Features	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Fastening Type	Shell Material
McGill Microwave Systems MP-6212-61S-C	Keyed	Flange	Panel Mount	Black	125 °C	-55 °C	Gold	Metal	61	24	61	Female Sockets Receptacle	Solder Cup	Dust Cap	Dust Tight Waterproof	IP67	Black	Bayonet Lock	Aluminum Die Cast
