Specification	7029-2561

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMPM Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	TFlex
Cable Type Size	405
Color	Blue
Features	Shielded
Frequency - Max	18 GHz
Length	0.5 ft
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMA, SMPM

7029 Series

Part	Style	Features	Frequency - Max	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	Overall Impedance	1st Contact Gender	2nd Contact Gender	Length	2nd Connector	1st Connector	1st Connector Mounting Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	2nd Connector Mounting Type

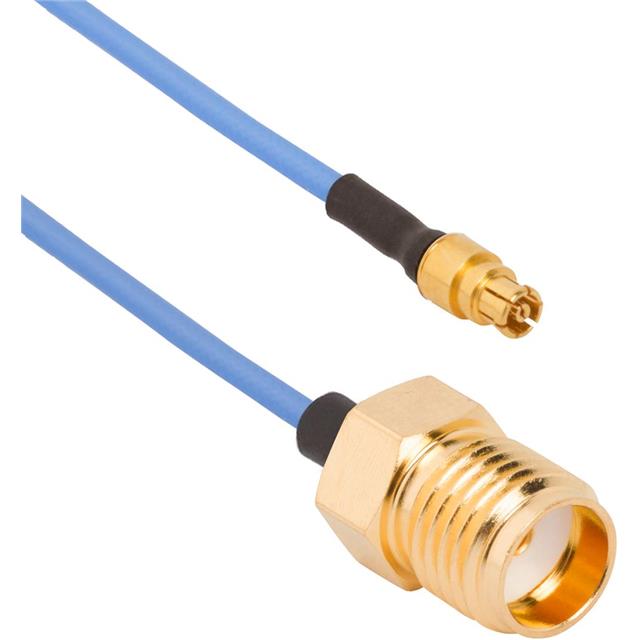

McGill Microwave Systems 7029-2560	SMA SMPM	Shielded	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	50 Ohms	Female	Female	24 in	SMPM Jack	SMA Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

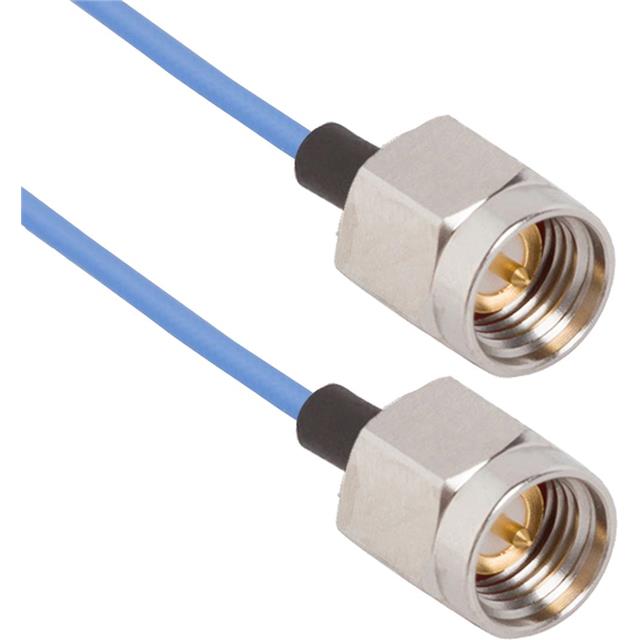

McGill Microwave Systems 7029-2556	SMA	Shielded	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	50 Ohms	Male	Male	12 in	SMA Plug	SMA Plug	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

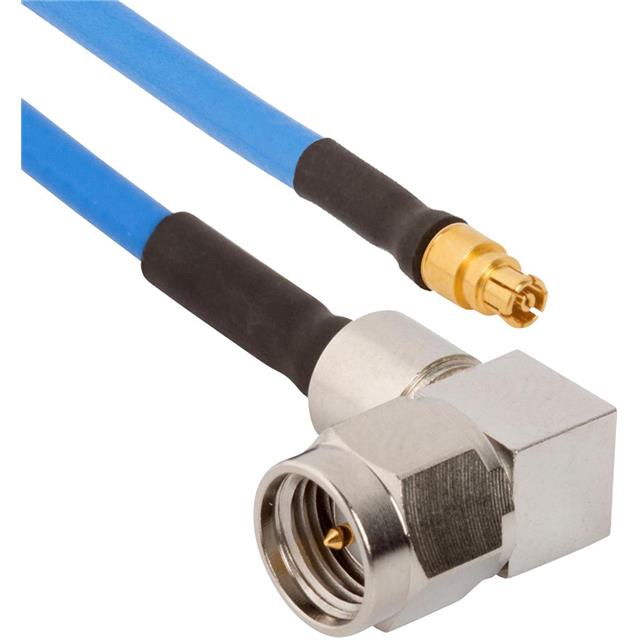

McGill Microwave Systems 7029-3246	SMA SMPM	Shielded	18 GHz	405	TFlex			50 Ohms	Female	Male	0.5 ft	Right Angle SMA Plug	SMPM Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

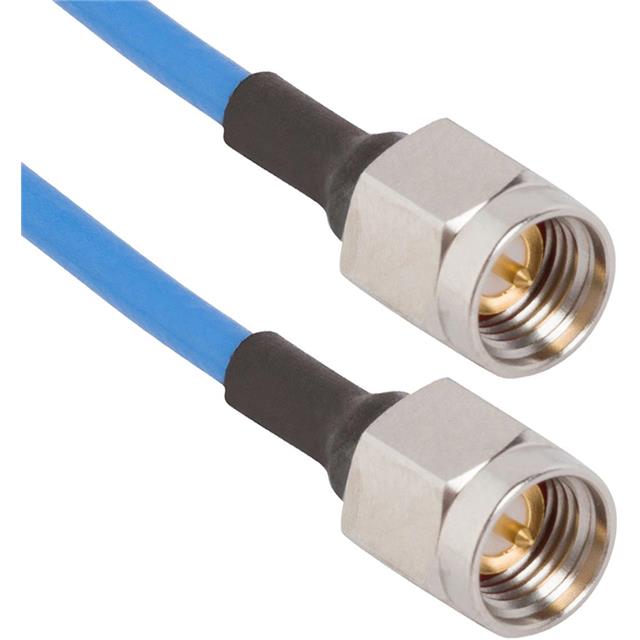

McGill Microwave Systems 7029-2554	SMA	Shielded	18 GHz	405	TFlex			50 Ohms	Male	Male	24 in	SMA Plug	SMA Plug	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

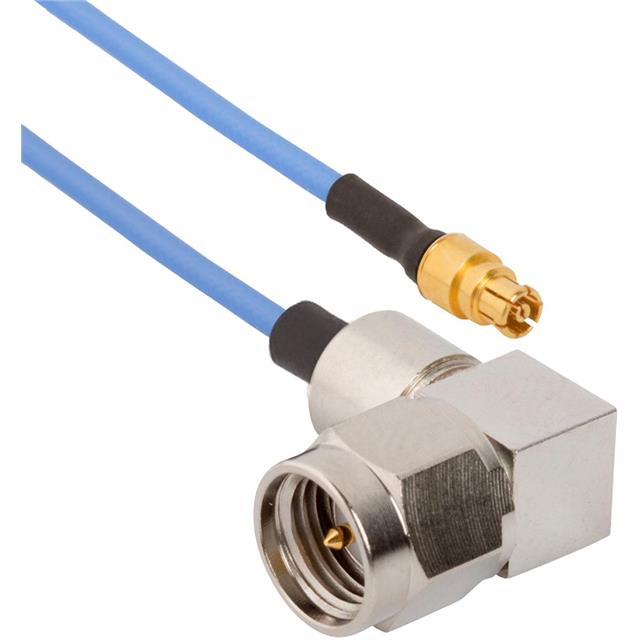

McGill Microwave Systems 7029-3245	SMA SMPM	Shielded	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	50 Ohms	Female	Male	12 in	Right Angle SMA Plug	SMPM Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)
McGill Microwave Systems 7029-2553	SMA	Shielded	18 GHz	405	TFlex			50 Ohms	Male	Male	12 in	SMA Plug	SMA Plug	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)
McGill Microwave Systems 7029-2559	SMA SMPM	Shielded	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	50 Ohms	Female	Female	12 in	SMPM Jack	SMA Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)
McGill Microwave Systems 7029-2561	SMA SMPM	Shielded	18 GHz	405	TFlex			50 Ohms	Female	Female	0.5 ft	SMPM Jack	SMA Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

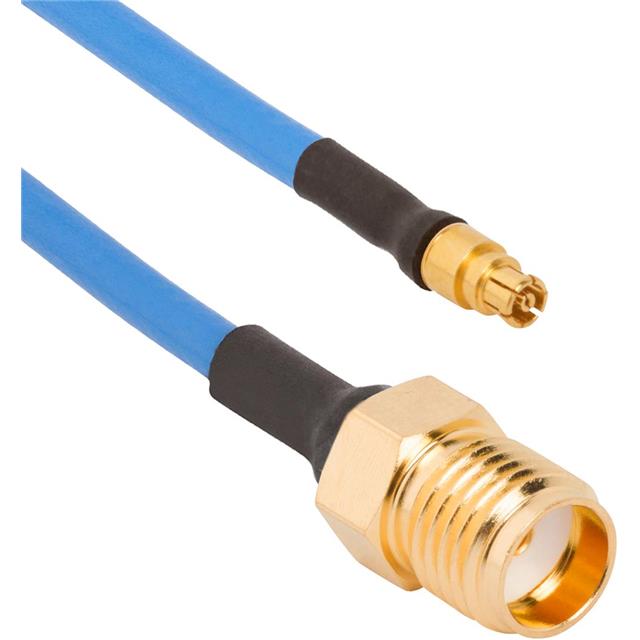

McGill Microwave Systems 7029-2563	SMA SMPM	Shielded	18 GHz	405	TFlex			50 Ohms	Female	Female	24 in	SMPM Jack	SMA Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)
McGill Microwave Systems 7029-2562	SMA SMPM	Shielded	18 GHz	405	TFlex			50 Ohms	Female	Female	12 in	SMPM Jack	SMA Jack	Free Hanging (In-Line)	Blue	-65 °C	165 °C	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

7029-2561 | Datasheet
