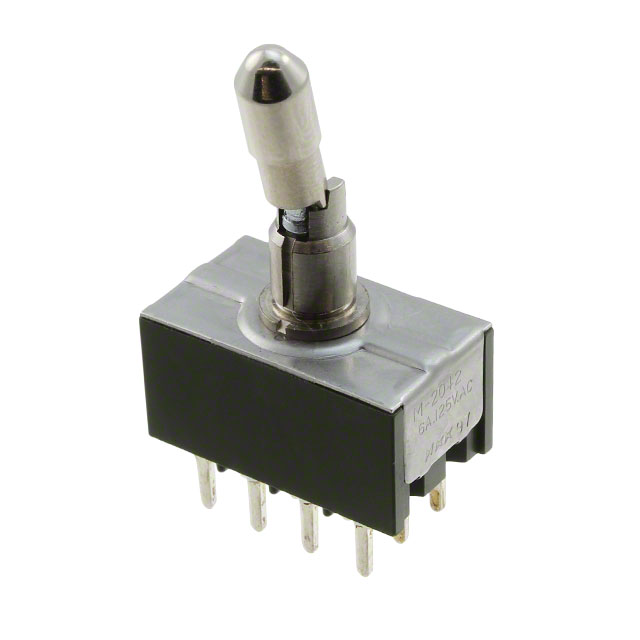

M2042LL2W03

Obsolete

NKK Switches

SWITCH TOGGLE 4PDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE 4PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length [x]	Circuit	Bushing Thread	Features	Actuator Material	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Switch Function	Electrical Life	Illumination	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]
NKK Switches M2042LL2W03	16.5 mm	4PDT	Unthreaded	Epoxy Sealed Terminals	Brass Chrome Plated	PC Pin	-30 ░C	85 °C	4 A 6 A	30 V	Locking Lever	On-On	25000 Steps	Non-Illuminated	125 V	Through Hole
NKK Switches M2042LL4W01	16.5 mm	4PDT	M6 x 0.75	Epoxy Sealed Terminals	Brass Chrome Plated	Solder Lug	-30 ░C	85 °C	4 A 6 A	30 V	Locking Lever	On-On	25000 Steps	Non-Illuminated	125 V		6.5 mm
NKK Switches M2042LL1G01	16.5 mm	4PDT	1/4-40	Epoxy Sealed Terminals	Brass Chrome Plated	Solder Lug	-30 ░C	85 °C	0.4 VA	28 V	Locking Lever	On-On	50000 Cycles	Non-Illuminated	28 V		6.5 mm
NKK Switches M2042LL2W40	16.5 mm	4PDT	Unthreaded	Epoxy Sealed Terminals	Brass Chrome Plated	PC Pin	-30 ░C	85 °C	4 A 6 A	30 V	Locking Lever	On-On	25000 Steps	Non-Illuminated	125 V	Right Angle Through Hole Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 4PDT Through Hole
