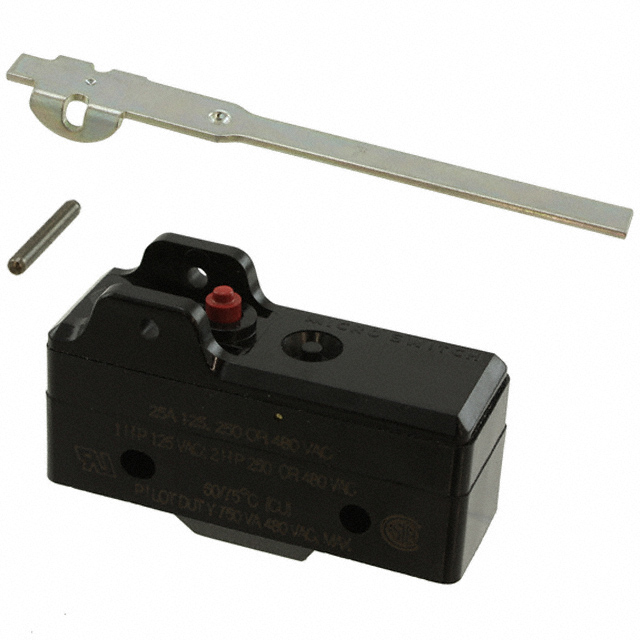

YE-2RV198-A41

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	YE-2RV198-A41	YE-2 Series

Actuator Type	Lever, Straight	Lever, Straight, Round (Pin Plunger)
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	25 A	25 A
Differential Travel	0.007 in	0.007 in
Differential Travel	0.18 mm	0.18 mm
Mechanical Life	20000000 Cycles	20000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force [Max]	595 gf	595 gf
Operating Force [Min]	425 gf	425 gf
Operating Position	18 mm	18 mm
Operating Position	0.71 "	0.71 "
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	0.25 mm	0.25 mm
Overtravel	0.01 in	0.01 in
Pretravel	0.05 in	0.05 in
Pretravel	1.27 mm	1.27 mm
Release Force [Max]	397 gf	397 gf
Release Force [Min]	283 gf	283 gf
Switch Function	Off-Mom	Off-Mom
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

SWITCH SNAP ACT SPST-NO 25A 125V

Part	Switch Function	Current Rating (Amps)	Release Force [Max]	Release Force [Min]	Mounting Type	Pretravel	Pretravel	Termination Style	Differential Travel	Differential Travel	Mechanical Life	Operating Position	Operating Position	Overtravel	Overtravel	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit
Honeywell Sensing and Productivity Solutions YE-2RV198-A41	Off-Mom	25 A	397 gf	283 gf	Chassis Mount	0.05 in	1.27 mm	Screw Terminal	0.007 in	0.18 mm	20000000 Cycles	18 mm	0.71 "	0.25 mm	0.01 in	125 V	425 gf	595 gf	85 °C	-55 °C	Lever, Straight	SPST-NO
Honeywell Sensing and Productivity Solutions YE-2R-A4	Off-Mom	25 A			Chassis Mount			Screw Terminal													Round (Pin Plunger)	SPST-NO
