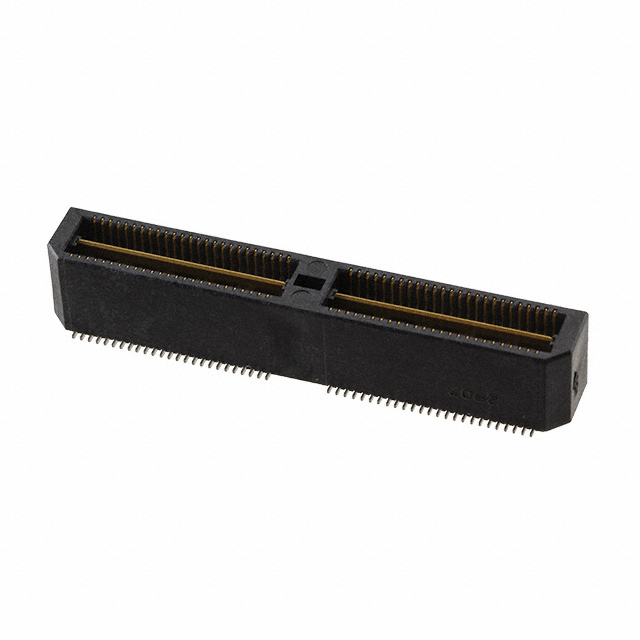

QTS-050-02-F-D-A

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QSS Series Other Related Documents 03 +2

QTS-050-02-F-D-A

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet QSS Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTS-050-02-F-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QTS-050 Series

Part	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Number of Positions	Connector Type
Samtec Inc. QTS-050-03-L-D-A-K	Gold	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	Surface Mount	10.27 mm	0.404 in	0.64 mm	0.025 in	2	11 mm	100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-04-L-D-A-K-TR	Gold	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	Surface Mount	15.24 mm	0.6 in	0.64 mm	0.025 in	2	16 mm	100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-02-F-D-A	Gold		3 Áin	0.076 Ám	Surface Mount	7.06 mm	0.278 "	0.64 mm	0.025 in	2	8 mm	100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-01-L-D-A-GP-K	Gold	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	10 Áin	0.25 Ám	Surface Mount	4.06 mm	0.16 in	0.64 mm	0.025 in	2	5 mm	100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-01-L-D-RA-WT-P	Gold	Ground Bus (Plane) Pick and Place Solder Retention	10 Áin	0.25 Ám	Surface Mount Right Angle	9.42 mm	0.371 in	0.64 mm	0.025 in	2		100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-01-F-D-RA-WT-LS1	Gold	Ground Bus (Plane) Mounting Flange Solder Retention	3 Áin	0.076 Ám	Surface Mount Right Angle	9.42 mm	0.371 in	0.64 mm	0.025 in	2		100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-01-F-D-RA-WT-LS2	Gold	Ground Bus (Plane) Mounting Flange Solder Retention	3 Áin	0.076 Ám	Surface Mount Right Angle	9.42 mm	0.371 in	0.64 mm	0.025 in	2		100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-02-L-D-RA-WT-P	Gold	Ground Bus (Plane) Pick and Place Solder Retention	10 Áin	0.25 Ám	Surface Mount Right Angle	9.42 mm	0.371 in	0.64 mm	0.025 in	2		100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-02-L-D-A-TR	Gold		10 Áin	0.25 Ám	Surface Mount	7.06 mm	0.278 "	0.64 mm	0.025 in	2	8 mm	100	Header Outer Shroud Contacts
Samtec Inc. QTS-050-02-L-D-RA-WT-LS2	Gold	Ground Bus (Plane) Mounting Flange Solder Retention	10 Áin	0.25 Ám	Surface Mount Right Angle	9.42 mm	0.371 in	0.64 mm	0.025 in	2		100	Header Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	64	$ 10.01
		128	$ 9.36

QTS-050-02-F-D-A

Deep-Dive with AI

QTS-050-02-F-D-A

Deep-Dive with AI

Technical Specifications

QTS-050 Series

Pricing

Description

QTS-050 Series

Documents

Datasheet

QSS Series Other Related Documents 03

QTS-025-01-F-D-A Datasheet 02

0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip

QTS-050 Series
