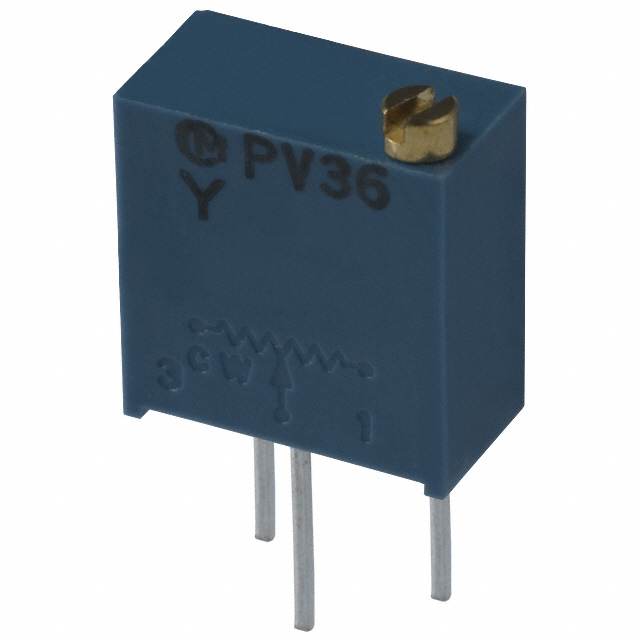

PV36Y500A01B00

Obsolete

Bourns Inc.

TRIMMER 50 OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 50 OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Adjustment Type	Termination Style	Resistive Material	Number of Turns	Tolerance	Mounting Type	Resistance
Bourns Inc. PV36Y503C01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	50 kOhms
Bourns Inc. PV36Y500A01B00	150 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	50 Ohms
Bourns Inc. PV36Y104A01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	100 kOhms
Bourns Inc. PV36Y103C01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	10000 Ohms
Bourns Inc. PV36Y502A01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	5 kOhms
Bourns Inc. PV36Y503A01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	50 kOhms
Bourns Inc. PV36Y502C01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	5 kOhms
Bourns Inc. PV36Y253A01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	25 kOhms
Bourns Inc. PV36Y501C01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	500 Ohms
Bourns Inc. PV36Y105A01B00	100 ppm/°C	9.6 mm	5 mm	0.378 "	0.197 in	0.5 W	0.5 W	Top Adjustment	PC Pins	Cermet	25	10 %	Through Hole	1 MOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
