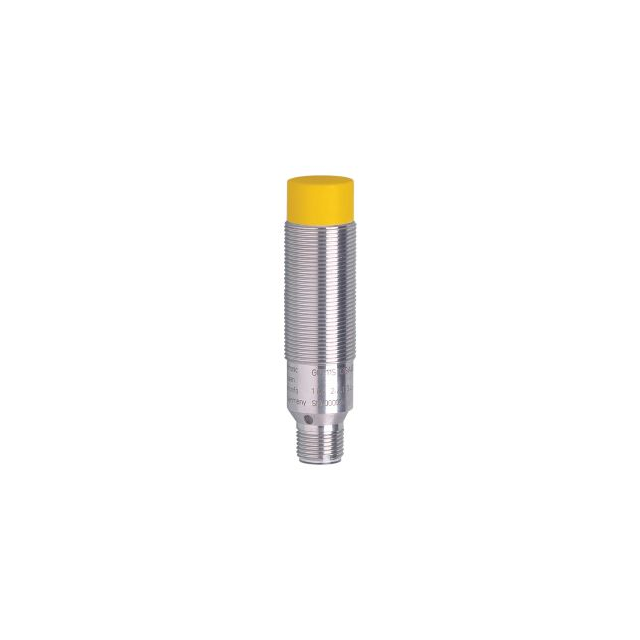

GG711S

Active

ifm efector, inc.

SENSOR PROX INDUCTIVE 1-8MM CYL

Search across all available documentation for this part.

Active

ifm efector, inc.

SENSOR PROX INDUCTIVE 1-8MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	GG711S

Indicator [custom]	LED
Ingress Protection	IP65, IP67
Material - Body	Polybutylene Terephthalate (PBT), Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	4-Wire, PNP
Package / Case	Cylinder, Threaded - M18
Sensing Distance [Max]	0.315 in
Sensing Distance [Max]	8 mm
Sensing Distance [Min]	1 mm
Sensing Distance [Min]	0.039 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	19.2 V

SENSOR PROX INDUCTIVE 1-8MM CYL

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Indicator [custom]	Shielding	Ingress Protection	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Package / Case
ifm efector, inc. GG711S	4-Wire, PNP	19.2 V	30 VDC	Connector	LED	Unshielded	IP65, IP67	Polybutylene Terephthalate (PBT), Stainless Steel	70 °C	-25 °C	Inductive	1 mm	0.315 in	8 mm	0.039 in	Cylinder, Threaded - M18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 217.00

General part information

SENSOR PROX INDUCTIVE 1-8MM CYL

Technical documentation and resources
