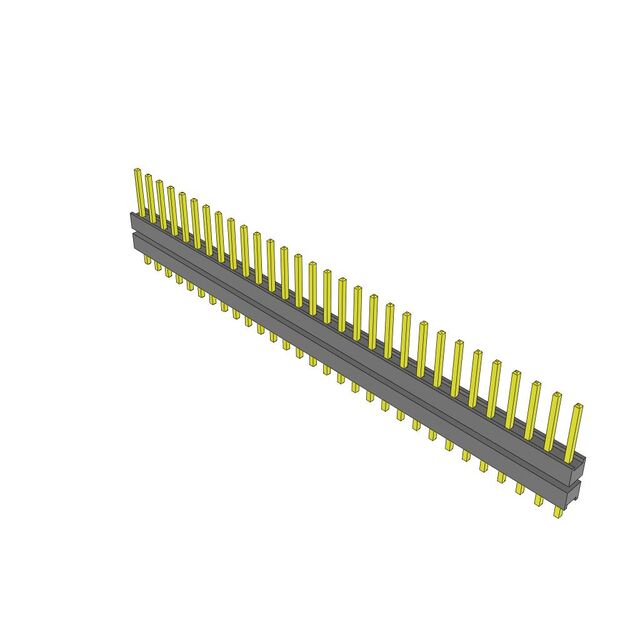

DW-30-15-G-S-236

Active

Samtec Inc.

CONN HDR 30POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDW Datasheet Datasheet +1

DW-30-15-G-S-236

Active

Samtec Inc.

CONN HDR 30POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-30-15-G-S-236

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	16.002 mm
Length - Overall Pin [x]	0.63 in
Length - Post (Mating) [x]	7.214 mm
Length - Post (Mating) [x]	0.284 in
Length - Stack Height [x]	0.236 in
Length - Stack Height [x]	5.994 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	30
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-30-15 Series

Part	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Number of Positions	Length - Tail [x]	Length - Tail [x]	Number of Rows	Termination	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-30-15-F-S-300	0.3 in	7.62 mm	2.54 mm	0.1 in	30	0.11 in	2.794 mm	1	Solder	Through Hole	0.22 in	5.588 mm	Gold	Black	3 Áin	0.076 Ám	16.002 mm	0.63 in
Samtec Inc. DW-30-15-F-D-275	0.275 in	6.985 mm	2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.245 in	6.223 mm	Gold	Black	3 Áin	0.076 Ám	16.002 mm	0.63 in	0.1 in	2.54 mm
Samtec Inc. DW-30-15-L-D-290	0.29 in	7.366 mm	2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.23 in	5.842 mm	Gold	Black	10 Áin	0.25 Ám	16.002 mm	0.63 in	0.1 in	2.54 mm
Samtec Inc. DW-30-15-G-S-236	0.236 in	5.994 mm	2.54 mm	0.1 in	30	0.11 in	2.794 mm	1	Solder	Through Hole	0.284 in	7.214 mm	Gold	Black	10 Áin	0.25 Ám	16.002 mm	0.63 in
Samtec Inc. DW-30-15-L-D-250	0.25 in	6.35 mm	2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.27 in	6.858 mm	Gold	Black	10 Áin	0.25 Ám	16.002 mm	0.63 in	0.1 in	2.54 mm
Samtec Inc. DW-30-15-T-D-300	0.3 in	7.62 mm	2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.22 in	5.588 mm	Tin	Black			16.002 mm	0.63 in	0.1 in	2.54 mm
Samtec Inc. DW-30-15-T-S-393	0.393 in	9.982 mm	2.54 mm	0.1 in	30	0.11 in	2.794 mm	1	Solder	Through Hole	0.127 in	3.226 mm	Tin	Black			16.002 mm	0.63 in
Samtec Inc. DW-30-15-G-D-320			2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.2 in	5.08 mm	Gold	Black	10 Áin	0.25 Ám	16.002 mm	0.63 in	0.1 in	2.54 mm	0.32 in	8.128 mm
Samtec Inc. DW-30-15-S-D-290-LL	0.29 in	7.366 mm	2.54 mm	0.1 in	60	0.11 in	2.794 mm	2	Solder	Through Hole	0.23 in	5.842 mm	Gold	Black	30 µin	0.76 µm	16.002 mm	0.63 in	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.87

Description

General part information

DW-30-15 Series

30 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

DW Datasheet

Datasheet
