Q-2Q03N000R001M

Active

Amphenol Custom Cable

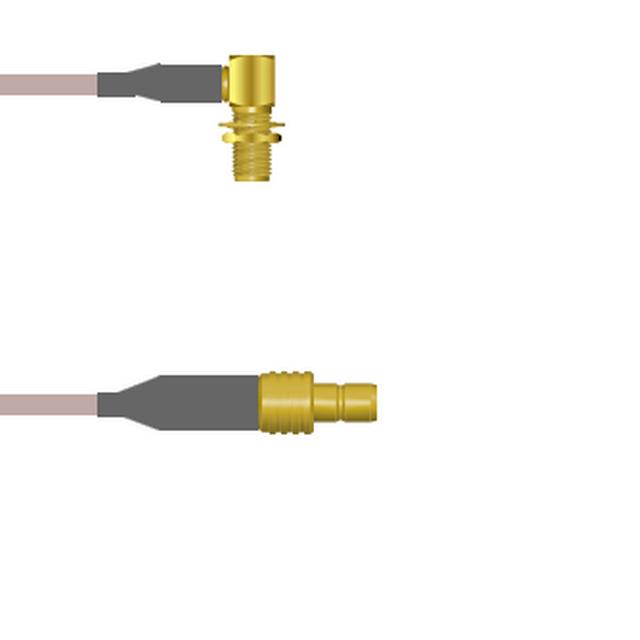

CBL ASSY SMA-SMB JACK-JACK 3.3'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-JACK 3.3'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Q03N000R001M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	2nd Connector	1st Connector Mounting Feature	Cable Impedance	1st Connector Mounting Type	1st Connector	Color	2nd Connector Mounting Type	Cable Type	Overall Impedance	Frequency - Max [Max]	Style	Connector Impedance	Length	Length	Length	1st Contact Gender	2nd Contact Gender	Features
Amphenol Custom Cable Q-2Q03N000R001M	SMB Jack	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	Right Angle SMA Jack	Copper	Free Hanging (In-Line)	RG-316 DS	50 Ohms	3 GHz	SMA to SMB	50 Ohms	1 m	3.3 ft	39.4 in	Female	Male	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-316 DS 39.4" (1.0m) 3.3'
