828-AG12D-ES-LF
ActiveTE Connectivity AMP Connectors

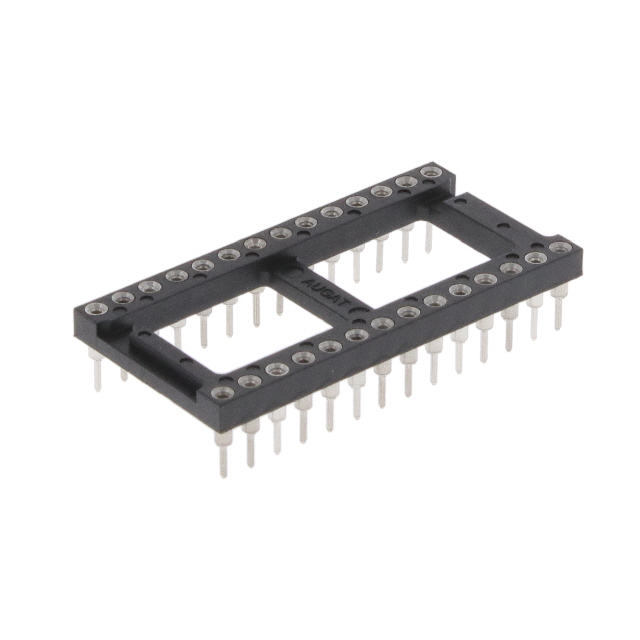

CONN IC DIP SOCKET 28POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
828-AG12D-ES-LF
ActiveTE Connectivity AMP Connectors
CONN IC DIP SOCKET 28POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 828-AG12D-ES-LF | 828 Series |
|---|---|---|
| Contact Finish - Mating | - | Gold, Tin-Lead |
| Contact Finish - Post | Tin | Gold, Tin-Lead, Tin |
| Contact Finish Thickness - Mating | - | Flash |
| Contact Finish Thickness - Post | - | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper, Copper Alloy |
| Contact Material - Post | Copper | Copper |
| Contact Material - Post | - | Copper Alloy |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | - | 3 A |
| Features | Open Frame | Open Frame |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Vertical, Right Angle | Through Hole, Vertical, Right Angle |
| Number of Positions or Pins (Grid) | 28 | 28 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | DIP | DIP |
| Type | 0.6 in | 0.6 in |
| Type | 15.24 mm | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
828 Series
CONN IC DIP SOCKET 28POS GOLD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish - Post | Contact Finish - Mating | Number of Positions or Pins (Grid) | Contact Material - Mating | Features | Contact Resistance | Type | Type | Type | Contact Material - Post | Mounting Type | Pitch - Post | Pitch - Post | Housing Material | Termination | Termination Post Length | Termination Post Length | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 828-AG11D-ESL-LF | 105 ░C | -55 °C | Flash | UL94 V-0 | Flash | Gold | Gold | 28 | Beryllium Copper | Open Frame | 10 mOhm | DIP | 0.6 in | 15.24 mm | Copper | Through Hole | 2.54 mm | 0.1 in | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Solder | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors 828-AG12D | 105 ░C | -55 °C | UL94 V-0 | Tin-Lead | Tin-Lead | 28 | Copper Alloy | Open Frame | 10 mOhm | DIP | 0.6 in | 15.24 mm | Through Hole | 2.54 mm | 0.1 in | Polyester | Solder | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 3 A | Copper Alloy | |||
TE Connectivity AMP Connectors 828-AG12D-ES-LF | 105 ░C | -55 °C | UL94 V-0 | Tin | 28 | Beryllium Copper | Open Frame | 10 mOhm | DIP | 0.6 in | 15.24 mm | Copper | Right Angle, Through Hole, Vertical | 2.54 mm | 0.1 in | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Solder | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm |
Description
General part information
828 Series
28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole, Right Angle, Vertical
