MAX9926UEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9926U
Deep-Dive with AI
Search across all available documentation for this part.
MAX9926UEVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9926U
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9926UEVKIT+ | MAX9926 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Current - Supply | - | 10 mA |
| Embedded | False | False |
| Function | Sensor, Variable Reluctance | Sensor, Variable Reluctance |
| Grade | - | Automotive |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Logic |
| Package / Case | - | 0.154 in |
| Package / Case | - | 16-SSOP |
| Package / Case | - | 3.9 mm |
| Primary Attributes | Differential Inputs | Differential Inputs |
| Qualification | - | AEC-Q100 |
| Secondary Attributes [Max] | 5.5 V | 5.5 V |
| Secondary Attributes [Min] | 4.5 V | 4.5 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-QSOP |
| Type | Interface | Sensor Interface, Interface |
| Utilized IC / Part | MAX9926U | MAX9926U |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 72.61 | |
MAX9926 Series
IC SENSOR INTERFACE VARI 16-QSOP
| Part | Type | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Supplier Device Package | Current - Supply | Mounting Type | Package / Case | Package / Case | Package / Case | Contents | Function | Supplied Contents | Primary Attributes | Embedded | Secondary Attributes [Max] | Secondary Attributes [Min] | Utilized IC / Part | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9926UAEE+T | Sensor Interface | Differential | 125 °C | -40 °C | Logic | 16-QSOP | 10 mA | Surface Mount | 0.154 in | 16-SSOP | 3.9 mm | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9926UEVKIT+ | Interface | Board(s) | Sensor, Variable Reluctance | Board(s) | Differential Inputs | 5.5 V | 4.5 V | MAX9926U | |||||||||||||
Analog Devices Inc./Maxim Integrated MAX9926UAEE/V+ | Sensor Interface | Differential | 125 °C | -40 °C | Logic | 16-QSOP | 10 mA | Surface Mount | 0.154 in | 16-SSOP | 3.9 mm | AEC-Q100 | Automotive | ||||||||
Analog Devices Inc./Maxim Integrated MAX9926UAEE+ | Sensor Interface | Differential | 125 °C | -40 °C | Logic | 16-QSOP | 10 mA | Surface Mount | 0.154 in | 16-SSOP | 3.9 mm | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9926UAEE/V+T | Sensor Interface | Differential | 125 °C | -40 °C | Logic | 16-QSOP | 10 mA | Surface Mount | 0.154 in | 16-SSOP | 3.9 mm | AEC-Q100 | Automotive |
Description
General part information
MAX9926 Series

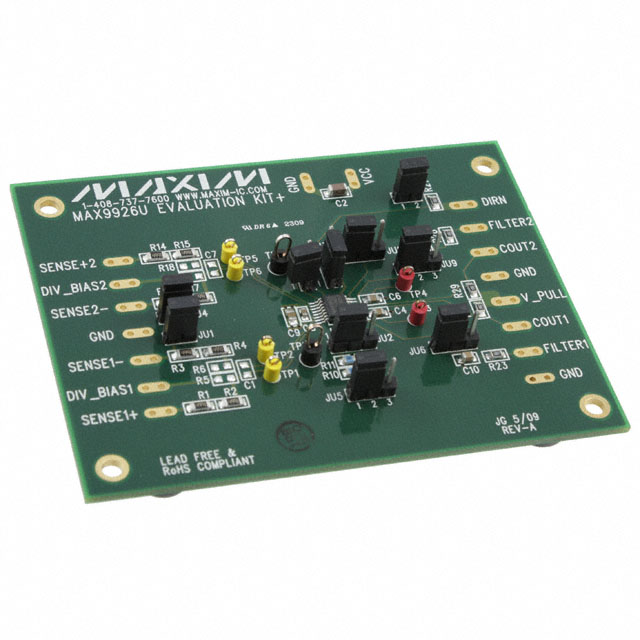

MAX9926U Sensor, Variable Reluctance Interface Evaluation Board
