1424474

Active

Phoenix Contact

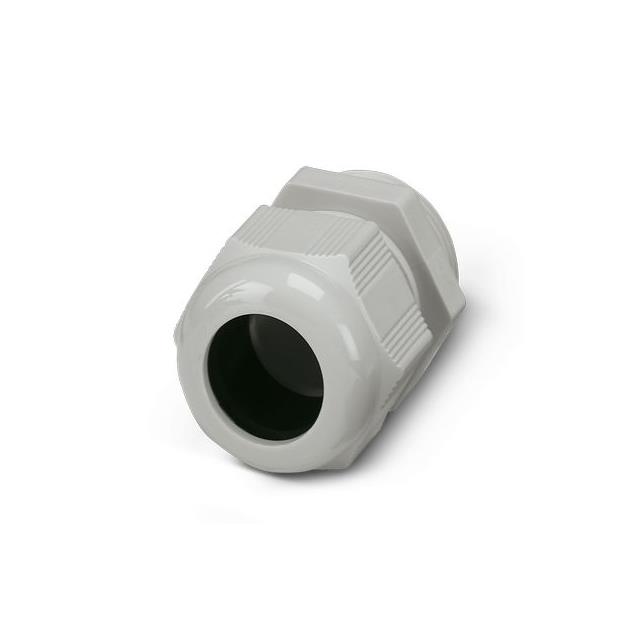

CABLE GLAND 22-32MM M40 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 22-32MM M40 POLYAMID

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.69

General part information

Cable Gland Polyamide (PA), Nylon M40x1.5 Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424474	G-INS-M40 Series

Color	Gray	Gray, Silver, Black
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Outside Cable Diameter (Max)	-	0.984 - 1.102 in
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max)	-	28 mm
Outside Cable Diameter (Max) [Max]	32 mm	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm	18.01 - 22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in	0.709 - 0.866 in
Thread Length	0.709 in	0.354 - 0.709 in
Thread Length	18.01 mm	9 - 18.01 mm
Thread Size	M40x1.5	M40x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 22-32MM M40 POLYAMID

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Size	Ingress Protection	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424474	100 °C	-40 °C	Seal	M40x1.5	IP66/IP68	Gray	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1424479	100 °C	-40 °C	Seal	M40x1.5	IP66/IP68	Gray	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1424529	100 °C	-40 °C	O-Ring, Seal	M40x1.5	IP66, IP68, IP69	Silver			Brass, Nickel Plated	18.01 mm	0.709 in	0.354 in	9 mm	Cable Gland	0.984 in	25 mm
Phoenix Contact 1424546	100 °C	-40 °C	O-Ring, Seal	M40x1.5	IP66, IP68, IP69	Silver			Stainless Steel	19 mm	0.748 in	0.354 in	9 mm	Cable Gland	1.102 in		28 mm
Phoenix Contact 1424484	100 °C	-20 C	Seal	M40x1.5	IP66/IP68	Black	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1411128	100 °C	-40 °C	Seal		IP66/IP68	Gray			Polyamide (PA), Nylon	19 mm	0.748 in	0.394 in	10 mm	Cable Gland	1.102 in		28 mm
