15DYS812-050210S-3-2.5

Active

IDEAL POWER

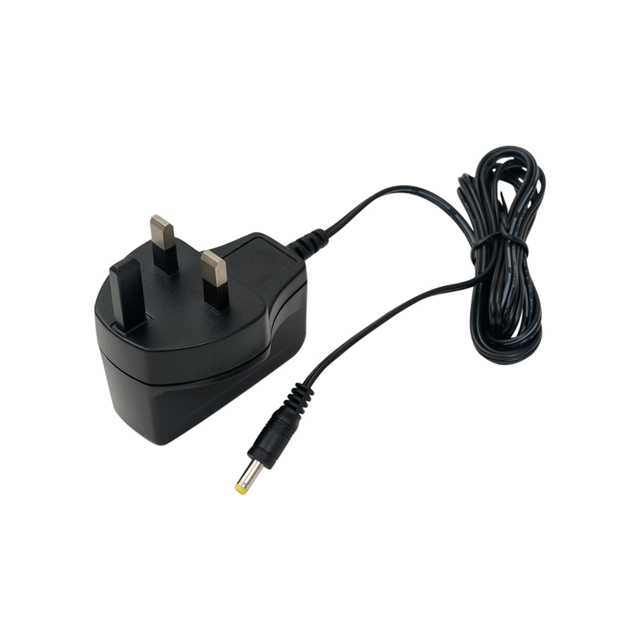

AC/DC WALL MOUNT ADAPTER 5V 11W

Search across all available documentation for this part.

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 5V 11W

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 5V 11W

Part	Power (Watts)	Approval Agency	Region Utilized	Form	Input Type	Current - Output (Max) [Max]	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [x]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]
IDEAL POWER 15DYS812-050210S-3-2.5	11 W	CE, cULus, RCM, TUV	United Kingdom	Wall Mount (Class I)	Fixed Blade	2.1 A	BS 1363	Barrel Plug	2.5 mm, 5.5 mm	11 mm	62368-1	90 VAC	264 VAC	5 V	ITE (Commercial)	Level VI	40 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 11 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
