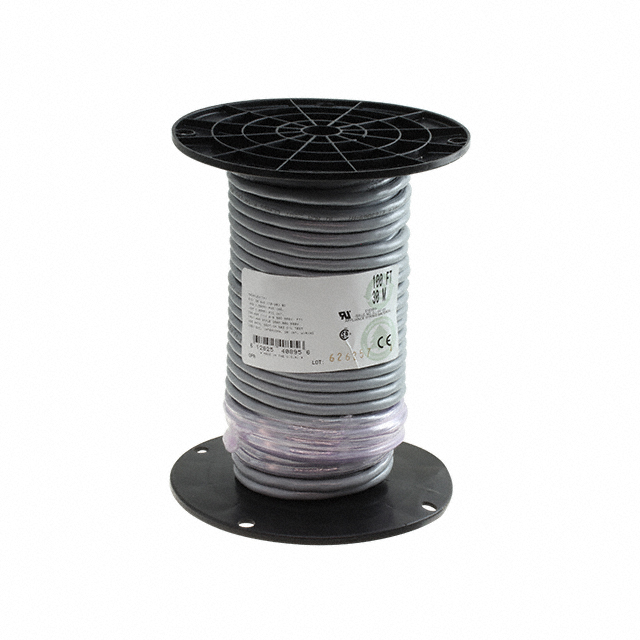

Specification	73002W 0081000

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	10
Conductor Strand Gauge	30
Features	Oil Resistant
Jacket (Insulation) Diameter	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length	1000 ft
Number of Conductors	2
Ratings	UL, 2587, Style
Usage	Industrial, Signal, Control
Voltage	600 V
Wire Gauge	20 AWG

73002W Series

Part	Jacket (Insulation) Thickness	Voltage	Jacket Color	Conductor Strand Gauge	Conductor Strand Count	Wire Gauge	Length	Usage	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter	Ratings	Features	Conductor Insulation	Cable Type	Number of Conductors
Belden Inc. 73002W 0081000	0.035 in	600 V	Gray	30	10	20 AWG	1000 ft	Control Industrial Signal	Poly-Vinyl Chloride (PVC)	Bare Copper	0.238 in	2587 Style UL	Oil Resistant	Poly-Vinyl Chloride (PVC)	Conductor Multi	2
Belden Inc. 73002W 008100	0.035 in	600 V	Gray	30	10	20 AWG	100 ft	Control Industrial Signal	Poly-Vinyl Chloride (PVC)	Bare Copper	0.238 in	2587 Style UL	Oil Resistant	Poly-Vinyl Chloride (PVC)	Conductor Multi	2
