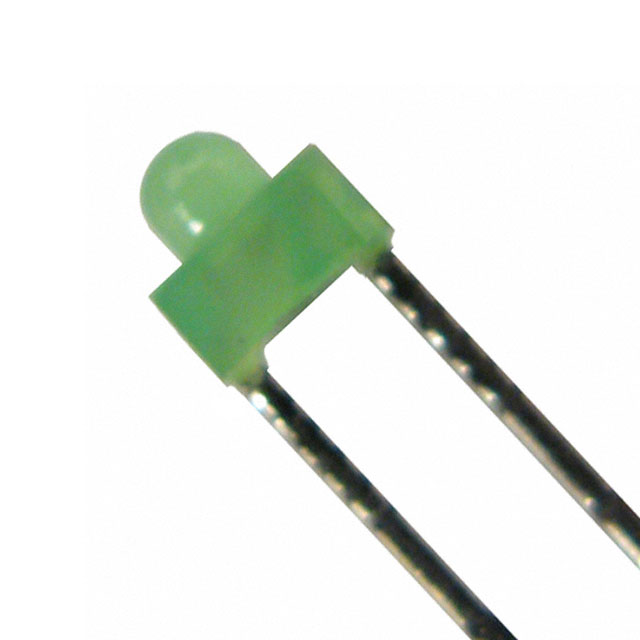

XLUG61D-A
ActiveSunLED
LED GREEN DIFFUSED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLUG61D-A
ActiveSunLED
LED GREEN DIFFUSED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLUG61D-A |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] | 4.35 mm |
| Lens Color | Green |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 11 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 568 nm |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.10 | |
Description
General part information
XLUG61 Series
Green 568nm LED Indication - Discrete 2V Radial
Documents
Technical documentation and resources
