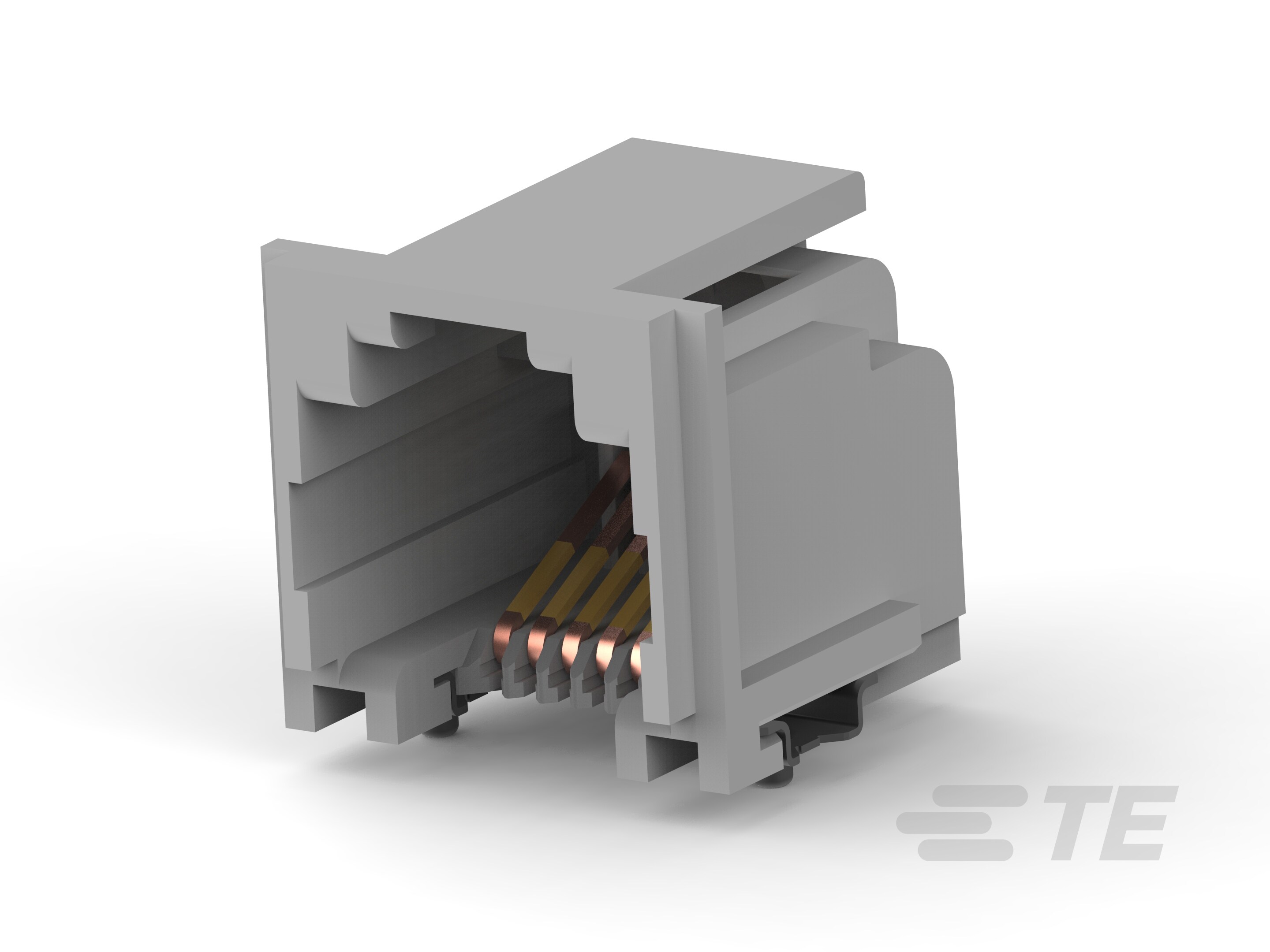

MJ,RJ11,SMT,6/6,GRAY,13

5406514-3

Active
TE Connectivity AMP Connectors

MJ,RJ11,SMT,6/6,GRAY,13 REEL

Find alt
MJ,RJ11,SMT,6/6,GRAY,13

5406514-3

Active
TE Connectivity AMP Connectors

MJ,RJ11,SMT,6/6,GRAY,13 REEL

Find alt

Description

General part information

5406514 Series

RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 3, Inverted - Latch Up, 6 Position, Standard Profile, Surface Mount, Right Angle, CGS SM

Technical Specifications

Parameters and characteristics for this part

Specification5406514-3
Connector TypeJack, RJ25, RJ11, RJ12, RJ14
Contact FinishGold
Contact Finish Thickness50 µin
Contact MaterialCopper Alloy
FeaturesBoard Lock
Housing MaterialThermoplastic
LED ColorDoes Not Contain LED
Mounting TypeSurface Mount
Number of Contacts6
Number of Ports1
Number of Positions6
Number of Rows1
Orientation Angle90 °
Orientation DirectionRight
ShieldingShielded
Tab DirectionUp
TerminationSolder
