1N4469/TR

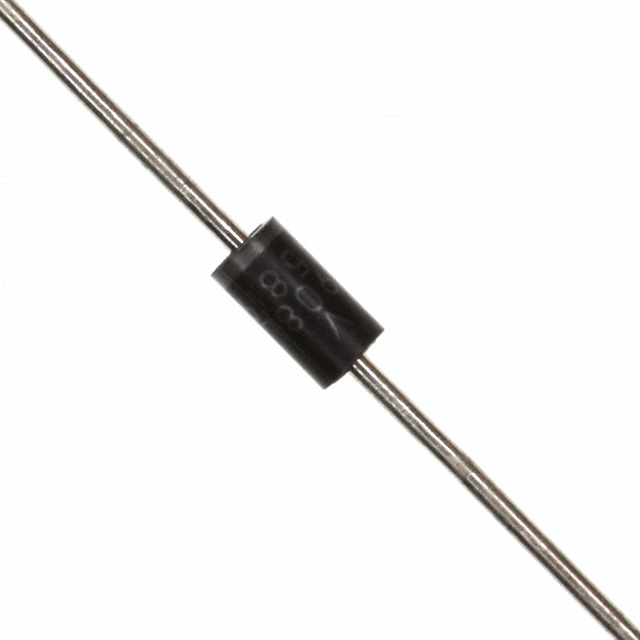

ActiveZENER DIODE SINGLE 2-PIN 15V, 5%, 1500MW DO-41 BAG
Deep-Dive with AI
Search across all available documentation for this part.
1N4469/TR
ActiveZENER DIODE SINGLE 2-PIN 15V, 5%, 1500MW DO-41 BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N4469/TR | 1N4469-Zener-Diode Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 50 nA | 50 nA |
| Impedance (Max) (Zzt) | 9 Ohms | 9 Ohms |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 175 ░C | 175 ░C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Power - Max [Max] | 1.5 W | 1.5 W |
| Supplier Device Package | DO-41 | DO-41, DO-204AL (DO-41) |
| Tolerance | 5 % | 5 % |
| Voltage - Zener (Nom) (Vz) | 15 V | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 157 | $ 5.28 | |
| Microchip Direct | N/A | 1 | $ 5.68 | |
| Newark | Each | 100 | $ 5.28 | |
| 500 | $ 5.08 | |||
1N4469-Zener-Diode Series
Zener Diode Single 2-Pin 15V, 5%, 1500mW DO-41 Bag
| Part | Mounting Type | Supplier Device Package | Current - Reverse Leakage @ Vr | Voltage - Zener (Nom) (Vz) | Operating Temperature [Max] | Operating Temperature [Min] | Power - Max [Max] | Tolerance | Impedance (Max) (Zzt) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N4469E3/TR | Through Hole | DO-41 | 50 nA | 15 V | 175 ░C | -65 °C | 1.5 W | 5 % | 9 Ohms | Axial, DO-204AL, DO-41 |
Microchip Technology 1N4469/TR | Through Hole | DO-41 | 50 nA | 15 V | 175 ░C | -65 °C | 1.5 W | 5 % | 9 Ohms | Axial, DO-204AL, DO-41 |
Microchip Technology 1N4469/TR | ||||||||||
Microchip Technology 1N4469E3/TR | ||||||||||
Microchip Technology 1N4469 | ||||||||||
Microchip Technology 1N4469 | Through Hole | DO-204AL (DO-41) | 50 nA | 15 V | 175 ░C | -65 °C | 1.5 W | 5 % | 9 Ohms | Axial, DO-204AL, DO-41 |
Description
General part information
1N4469-Zener-Diode Series
This Zener voltage regulator series is military qualified to MIL-PRF-19500/406 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 1.5 watt Zener voltage regulators are hermetically sealed with void-less glass construction using an internal metallurgical bond. It includes Zener selections from 3.3 to 200 volts in standard 5% tolerance. 1% and 2% tolerance versions are also available. Microchip also offers numerous other Zener products to meet higher and lower power ratings in both thru-hole and surface mount packages.
