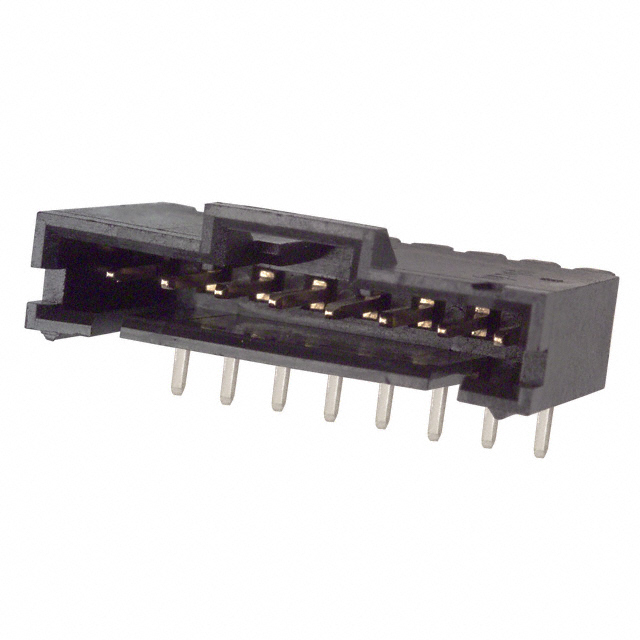

5-103635-7
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103635-7
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103635-7 | 103635 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 8 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.42 | |
| 23 | $ 1.30 | |||
| 115 | $ 1.16 | |||
| 506 | $ 1.04 | |||
| 1012 | $ 0.93 | |||
| 5014 | $ 0.83 | |||
| 10005 | $ 0.79 | |||
103635 Series
CONN HEADER R/A 3POS 2.54MM
| Part | Shrouding | Number of Positions Loaded | Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Current Rating (Amps) | Termination | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Color | Mounting Type | Insulation Material | Features | Contact Type | Connector Type | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Number of Rows | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Post | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103635-2 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | ||
TE Connectivity AMP Connectors 5-103635-8 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 9 | |
TE Connectivity AMP Connectors 7-103635-3 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 24 | |
TE Connectivity AMP Connectors 5-103635-1 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 2 | |
TE Connectivity AMP Connectors 1-103635-9 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 20 | |
TE Connectivity AMP Connectors 103635-4 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | ||
TE Connectivity AMP Connectors 5-103635-4 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | ||
TE Connectivity AMP Connectors 1-103635-0 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 11 | |
TE Connectivity AMP Connectors 1-103635-7 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 18 | |
TE Connectivity AMP Connectors 6-103635-5 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 16 | |
TE Connectivity AMP Connectors 6-103635-9 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 20 | |
TE Connectivity AMP Connectors 6-103635-4 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 15 | |
TE Connectivity AMP Connectors 103635-7 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 8 | |
TE Connectivity AMP Connectors 5-103635-2 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | ||
TE Connectivity AMP Connectors 6-103635-0 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 11 | |
TE Connectivity AMP Connectors 6-103635-2 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 13 | |
TE Connectivity AMP Connectors 103635-6 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 7 | |
TE Connectivity AMP Connectors 1-103635-2 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead | 13 | |
TE Connectivity AMP Connectors 7-103635-4 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | ||
TE Connectivity AMP Connectors 6-103635-3 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 14 | |
TE Connectivity AMP Connectors 5-103635-7 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 8 | |
TE Connectivity AMP Connectors 5-103635-9 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 10 | |
TE Connectivity AMP Connectors 5-103635-6 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin | 7 | |
TE Connectivity AMP Connectors 2-103635-4 | Shrouded - 4 Wall | All | Board to Board, Cable | -65 ░C | 105 ░C | Square | 3 A | Solder | Gold | 0.1 in | 2.54 mm | Latch Holder | Black | Through Hole, Right Angle | Thermoplastic | Keying Slot | Male Pin | Header | UL94 V-0 | 0.13 in | 3.3 mm | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | 2.54 µm | 100 µin | Brass | 1 | 0.23 in | 5.84 mm | Tin-Lead |
Description
General part information
103635 Series
Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
