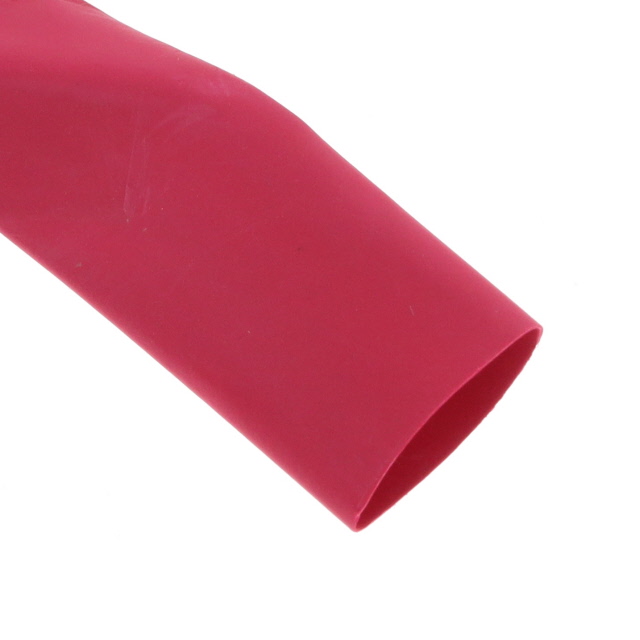

B2 1/2 RED SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1/2" RED FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSumitube® Solution Guide Datasheet

B2 1/2 RED SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1/2" RED FOOT

Deep-Dive with AI

DocumentsSumitube® Solution Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.41
		5	$ 1.28
		10	$ 0.97
		25	$ 0.92
		50	$ 0.87
		100	$ 0.82

Description

General part information

B2 1/2 Series

Heat Shrink Tubing, Flexible 0.520" (13.20mm) 2 to 1 Red Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Sumitube® Solution Guide

Datasheet

Specification	B2 1/2 RED SPL	B2 1/2 Series

Color	Red	Red, White, Yellow, Black
Features	Flame Retardant	Flame Retardant, UV Resistant
Inner Diameter - Recovered [diameter]	6.4 mm	6.4 mm
Inner Diameter - Recovered [diameter]	0.252 "	0.252 "
Inner Diameter - Supplied [diameter]	0.52 in	0.52 in
Inner Diameter - Supplied [diameter]	13.2 mm	13.2 mm
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness [custom]	0.025 "	0.025 "
Recovered Wall Thickness [custom]	0.64 mm	0.64 mm
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Spool Size	Spool Size	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Type	Features	Shrink Temperature	Color	Length [x]	Length [x]
Sumitomo Electric Interconnect Products, Inc. B2 1/2 RED SPL	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1	61 m	200 '	Enter Number of Feet in Order Quantity	6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant	90 °C	Red
Sumitomo Electric Interconnect Products, Inc. B2 1/2 WHITE SPL	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1	61 m	200 '	Enter Number of Feet in Order Quantity	6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant	90 °C	White
Sumitomo Electric Interconnect Products, Inc. B2 1/2 YELLOW 4FT	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1				6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant	90 °C	Yellow	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/2 BLACK 4FT	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1				6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant, UV Resistant	90 °C	Black	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/2 WHITE 4FT	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1				6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant	90 °C	White	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1/2 BLACK SPL	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1	61 m	200 '	Enter Number of Feet in Order Quantity	6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant, UV Resistant	90 °C	Black
Sumitomo Electric Interconnect Products, Inc. B2 1/2 YELLOW SPL	0.52 in	13.2 mm	135 °C	-55 °C	2 to 1	61 m	200 '	Enter Number of Feet in Order Quantity	6.4 mm	0.252 "	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	Tubing, Flexible	Flame Retardant	90 °C	Yellow
