OA92AP-22-1WB

Active

Orion Fans

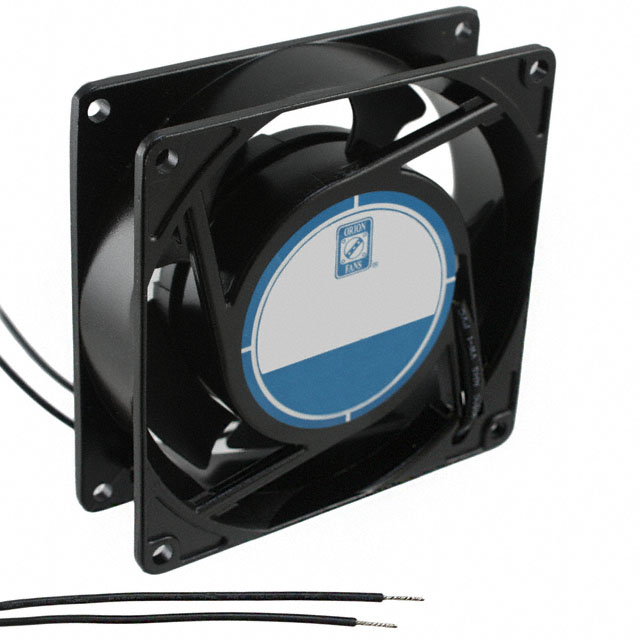

FAN AXIAL 92X26MM 230VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OA92AP-22-1WB

Active

Orion Fans

FAN AXIAL 92X26MM 230VAC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA92AP-22-1WB

Air Flow	0.98 m³/min
Air Flow	35 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	13 W
RPM	3000 RPM
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Voltage Range [Max]	260 VAC
Voltage Range [Min]	160 VAC
Weight	0.644 lb
Weight	292.11 g
Width [y]	26 mm

OA92AP Series

Part	Material - Blade	RPM	Voltage - Rated	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Air Flow	Air Flow	Bearing Type	Fan Type	Power (Watts)	Lifetime @ Temp.	Width [y]	Termination	Approval Agency	Material - Frame	Features	Voltage - Rated [Max]	Voltage - Rated [Min]	Noise
Orion Fans OA92AP-22-1WB	Polybutylene Terephthalate (PBT)	3000 RPM	230 VAC	0.644 lb	292.11 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Wire Leads	cURus TUV	Aluminum
Orion Fans OA92AP-11-1WB	Polybutylene Terephthalate (PBT)	3000 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Wire Leads	cURus TUV	Aluminum
Orion Fans OA92AP-11/22-1WB	Polybutylene Terephthalate (PBT)	3000 RPM				260 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	4 Wire Leads	cURus TUV	Aluminum	Dual Voltage	230 VAC	115 VAC
Orion Fans OA92AP-22-1TB	Polybutylene Terephthalate (PBT)	3000 RPM	230 VAC	0.644 lb	292.11 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum
Orion Fans OA92AP-11-1TB	Polybutylene Terephthalate (PBT)	3000 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum
Orion Fans OA92AP-11-3TB	Polybutylene Terephthalate (PBT)	1900 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	22.4 Pa	0.09 in H2O	0.616 m³/min	22 CFM	Ball	Tubeaxial	6 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum				19 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.00

Description

General part information

OA92AP Series

Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 35.0 CFM (0.980m³/min) 2 Wire Leads
