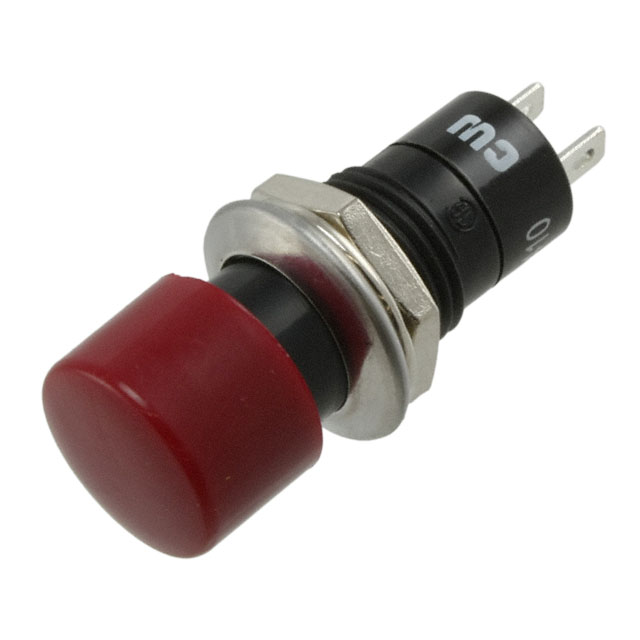

GPB040A05BR

Active

CW Industries

SWITCH PUSH SPST-NO 3A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH PUSH SPST-NO 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB040A05BR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Actuator Marking	Color - Actuator/Cap	Type	Circuit	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Type	Current Rating (Amps)	Termination Style
CW Industries GPB040A05BR	No Marking	Red	Standard	SPST-NO	125 V	Off-Mom	12.2 mm	Panel Mount Front	Button Round	3 A	Solder Lug
CW Industries GPB040B05BR	No Marking	Red	Standard	SPST	125 V	Off-On	12.2 mm	Panel Mount Front	Button Round	3 A	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
