9364 0602500

Active

Belden Inc.

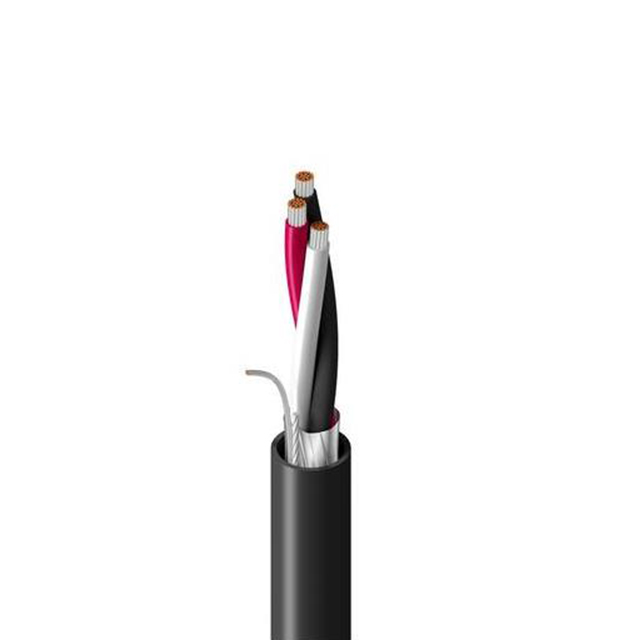

CABLE 3COND 20AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 20AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9364 0602500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	2500 ft
Length	762 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Coverage	Ratings	Wire Gauge	Conductor Material	Features	Jacket Color	Number of Conductors	Cable Type	Jacket (Insulation) Material	Usage	Voltage	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length [x]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Length	Length [x]
Belden Inc. 9364 06010000	100 %	UL Style 2464	20 AWG	Copper Tinned	Drain Wire Rip Cord	Chrome	3	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Instrumentation	300 V	Foil	19	32 AWG	0.94 mm	0.037 in	3048 m	10000 ft	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-30 ░C	105 ░C	Aluminum
Belden Inc. 9364 0602500	100 %	UL Style 2464	20 AWG	Copper Tinned	Drain Wire Rip Cord	Chrome	3	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Instrumentation	300 V	Foil	19	32 AWG	0.94 mm	0.037 in	762 m		Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-30 ░C	105 ░C	Aluminum	2500 ft
Belden Inc. 9364 060U500	100 %	UL Style 2464	20 AWG	Copper Tinned	Drain Wire Rip Cord	Chrome	3	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Instrumentation	300 V	Foil	19	32 AWG	0.94 mm	0.037 in		500 '	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-30 ░C	105 ░C	Aluminum		152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 2.47

General part information

3 (1 Triad) Conductor Multi-Conductor Cable Chrome 20 AWG Foil 2500' (762.0m)
