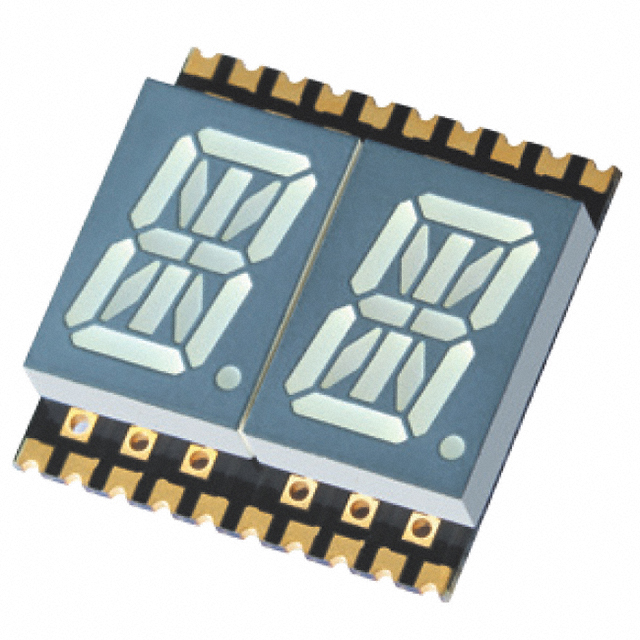

XZFAMOK10C2
ActiveSunLED
DISPLAY 14SEG 0.4" DBL ORG 32SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFAMOK10C2 |
|---|---|
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating | 13 mcd |
| Number of Characters | 2 |
| Package / Case | 32-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 0.74 " |
| Size / Dimension [y] | 18.8 mm |
| Size / Dimension [z] | 0.748 in |
| Size / Dimension [z] | 19 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 4.01 | |
| 500 | $ 3.38 | |||
| 750 | $ 3.27 | |||
| 1250 | $ 3.10 | |||
| 2500 | $ 2.97 | |||
Description
General part information
XZFAMOK10 Series
Display Modules - LED Character and Numeric Orange 14-Segment, Alphanumeric 2 Character Common Cathode 2V 10mA 0.748" H x 0.740" W x 0.148" D (19.00mm x 18.80mm x 3.75mm) 32-SMD, No Lead
