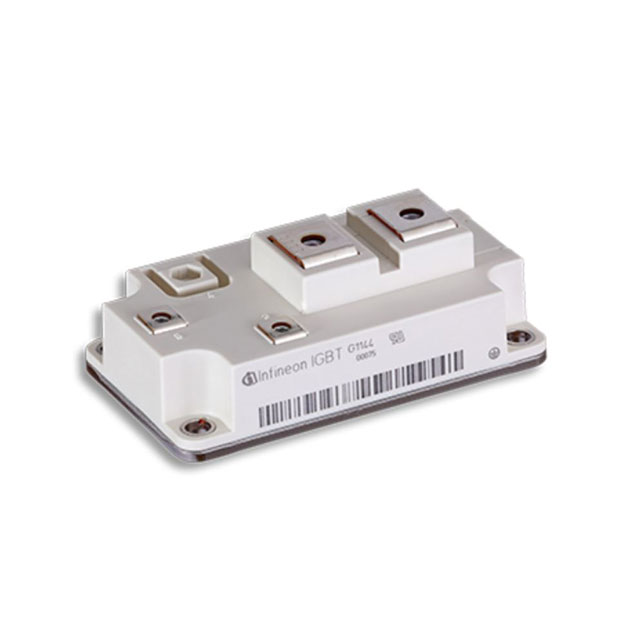

DZ800S17K3HOSA1
ActiveInfineon Technologies
THE DZ800S17K3 IS A DIODES DIODE MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 800 A.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DZ800S17K3HOSA1
ActiveInfineon Technologies
THE DZ800S17K3 IS A DIODES DIODE MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 800 A.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ800S17K3HOSA1 |
|---|---|
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | Module |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | AG-62MM-2 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 164.79 | |
| 10 | $ 154.34 | |||
| 30 | $ 148.54 | |||
Description
General part information
DZ800S17 Series
62 mm1700 V, 800 A DiodeIGBT modulewith EC3.
