Q-1Y0750013.25M

Active

Amphenol Custom Cable

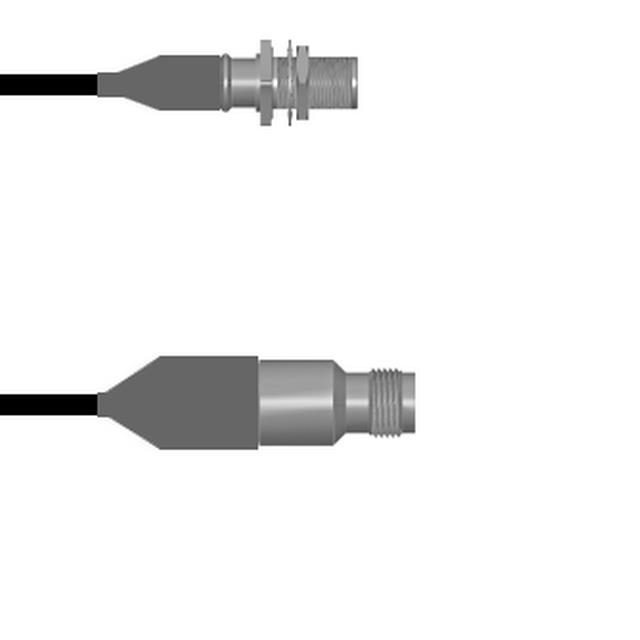

CBL ASSY RPTNC-NTYPE J-J 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Y0750013.25M

Active

Amphenol Custom Cable

CBL ASSY RPTNC-NTYPE J-J 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Y0750013.25M

1st Connector	RP-TNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	RP-TNC to N-Type

Q-1Y0750 Series

Part	Frequency - Max [Max]	2nd Contact Gender	Length	Length	Overall Impedance	1st Connector	Color	Style	2nd Connector	Cable Type	2nd Connector Mounting Feature	1st Connector Mounting Type	Features	1st Contact Gender	2nd Connector Mounting Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-1Y0750013003i	6000 MHz	Female	3 in	76.2 mm	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount
Amphenol Custom Cable Q-1Y0750013.25M	6000 MHz	Female			50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount	9.843 "	250 mm
Amphenol Custom Cable Q-1Y0750013006i	6000 MHz	Female	6 in	152.4 mm	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount
Amphenol Custom Cable Q-1Y0750013003M	6000 MHz	Female	118.1 in	3 m	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount			9.8 '
Amphenol Custom Cable Q-1Y0750013.75M	6000 MHz	Female	29.53 "	750 mm	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount
Amphenol Custom Cable Q-1Y07500131.5M	6000 MHz	Female	59.1 in	1.5 m	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount			4.9 ft
Amphenol Custom Cable Q-1Y0750013036i	6000 MHz	Female	36 in	91.44 cm	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount
Amphenol Custom Cable Q-1Y0750013108i	6000 MHz	Female	108 in	2.7 m	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount			9 ft
Amphenol Custom Cable Q-1Y0750013001M	6000 MHz	Female	39.4 in	1 m	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount			3.3 ft
Amphenol Custom Cable Q-1Y0750013072i	6000 MHz	Female	72 in	1.8 m	50 Ohms	RP-TNC Jack	Black	RP-TNC to N-Type	N-Type Jack	LMR 400	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Male	Panel Mount			6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 140.15
		25	$ 137.52
		50	$ 134.90
		100	$ 132.27
		250	$ 129.64

Description

General part information

Q-1Y0750 Series

Cable Assembly Coaxial RP-TNC to N-Type LMR 400 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
