HSC1003R3J

Active

TE Connectivity Passive Product

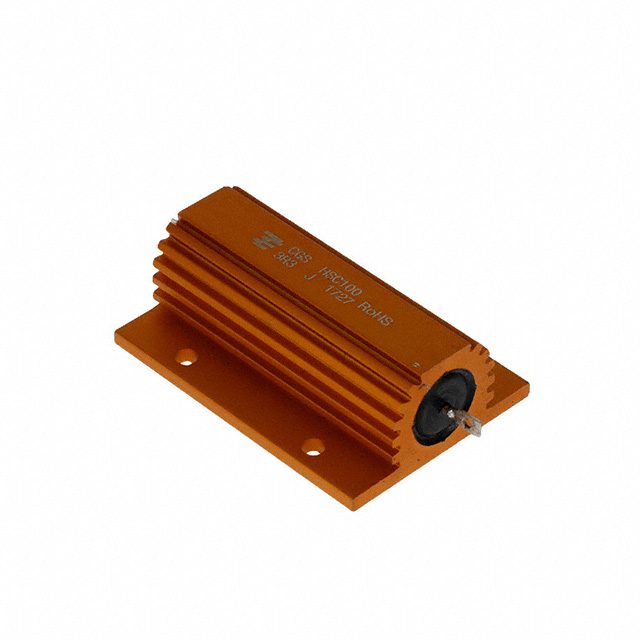

RES CHAS MNT 3.3 OHM 5% 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSC1003R3J

Active

TE Connectivity Passive Product

RES CHAS MNT 3.3 OHM 5% 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSC1003R3J

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max] [z]	26 mm
Height - Seated (Max) [Max] [z]	1.024 in
Lead Style	Solder Lugs
Mounting Feature	Flanges
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	100 W
Resistance	3.3 Ohms
Size / Dimension [x]	65.5 mm
Size / Dimension [x]	2.579 in
Size / Dimension [y]	47.5 mm
Size / Dimension [y]	1.87 "
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

HSC100 Series

Part	Power (Watts)	Coating, Housing Type	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Feature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Resistance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Passive Product HSC10022RF	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	1 %	Flanges	26 mm	1.024 in	Solder Lugs	22 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC10047RJ	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	47 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC1003R3J	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	3.3 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC1003R9J	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	3.9 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC10020RF	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	1 %	Flanges	26 mm	1.024 in	Solder Lugs	20 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC100R39J	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	390 mOhms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC10012R4J	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	12.4 Ohms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC100360RJ	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	360 Ohms	30 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC100R68J	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	680 mOhms	50 ppm/°C	-55 °C	200 °C
TE Connectivity Passive Product HSC100390RJ	100 W	Aluminum	Wirewound	47.5 mm	65.5 mm	2.579 in	1.87 "	5 %	Flanges	26 mm	1.024 in	Solder Lugs	390 Ohms	30 ppm/°C	-55 °C	200 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.47
		10	$ 8.18
		30	$ 7.75
		50	$ 7.58

Description

General part information

HSC100 Series

3.3 Ohms ±5% 100W Wirewound Chassis Mount Resistor

Documents

Technical documentation and resources
