1241002-1
ActiveTE Connectivity AMP Connectors

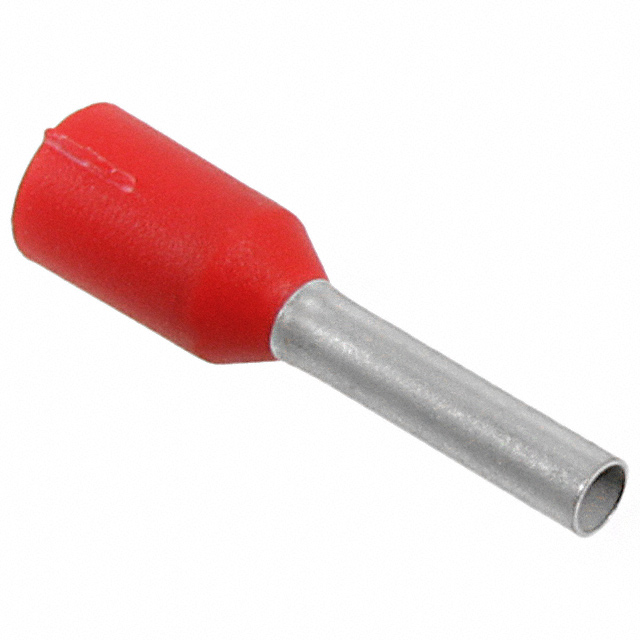

CONN FERRULE DIN 17AWG RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241002-1
ActiveTE Connectivity AMP Connectors
CONN FERRULE DIN 17AWG RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241002-1 |
|---|---|
| Color | Red |
| Insulation | Insulated |
| Length - Overall [x] | 14.5 mm |
| Length - Pin [x] | 8 mm |
| Size | 17 AWG |
| Size | 1.00mm² |
| Style | DIN |
| Type | Single Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.09 | |||
| Tape & Reel (TR) | 12000 | $ 0.08 | ||
| 36000 | $ 0.07 | |||
| 60000 | $ 0.06 | |||
1241002 Series
CONN FERRULE DIN 17AWG RED
| Part | Size | Size | Length - Overall [x] | Color | Insulation | Style | Type | Length - Pin [x] |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241002-1 | 17 AWG | 1.00mm² | 14.5 mm | Red | Insulated | DIN | Single Wire | 8 mm |
Description
General part information
1241002 Series
Red Wire Ferrule Connector DIN 17 AWG (1.00mm²) Single Wire
