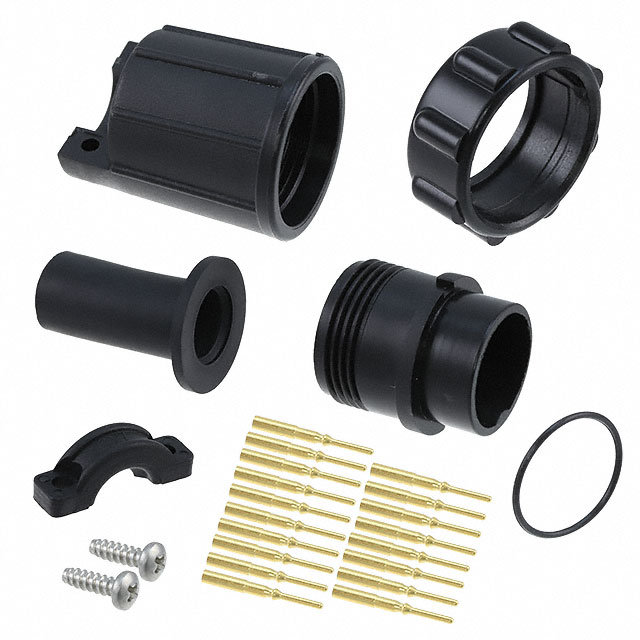

13280-18PG-326
ActiveConxall/Switchcraft
CONN PLUG MALE 18POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
13280-18PG-326
ActiveConxall/Switchcraft
CONN PLUG MALE 18POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 13280-18PG-326 | 13280-18P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 6.35 mm |
| Cable Opening | - | 0.25 in |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.31 - 0.38 in |
| Cable Opening | - | 7.87 mm |
| Cable Opening [Max] [diameter] | 7.62 mm | 7.62 mm |
| Cable Opening [Max] [diameter] | 0.3 in | 0.3 in |
| Cable Opening [Min] [diameter] | 0.26 in | 0.26 in |
| Cable Opening [Min] [diameter] | 6.6 mm | 6.6 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 18 | 18 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
13280-18P Series
CONN PLUG MALE 18POS GOLD CRIMP
| Part | Connector Type | Backshell Material, Plating | Contact Material | Color | Ingress Protection | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Voltage Rating | Orientation | Fastening Type | Contact Finish - Mating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Shielding | Mounting Type | Primary Material | Features | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 13280-18PG-326 | Male Pins, Plug | Nylon, Polyamide (PA) | Brass | Black | Weathertight | Crimp | -40 °C | 115 °C | 18 | 600 V | Keyed | Bayonet Lock | Gold | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm | Unshielded | Free Hanging (In-Line) | Plastic | Backshell, Cable Clamp | |||||||
Conxall/Switchcraft 13280-18PG-321 | Male Pins, Plug | Nylon, Polyamide (PA) | Brass | Black | Weathertight | Crimp | -40 °C | 115 °C | 18 | 600 V | Keyed | Bayonet Lock | Gold | Unshielded | Free Hanging (In-Line) | Plastic | Backshell, Cable Clamp | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in | |||||||
Conxall/Switchcraft 13280-18PG-331 | Male Pins, Plug | Nylon, Polyamide (PA) | Brass | Black | Weathertight | Crimp | -40 °C | 115 °C | 18 | 600 V | Keyed | Bayonet Lock | Gold | Unshielded | Free Hanging (In-Line) | Plastic | Backshell, Cable Clamp | 9.65 mm | 0.31 in, 0.38 in | 7.87 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.84 | |
| 10 | $ 11.99 | |||
| 25 | $ 11.60 | |||
Description
General part information
13280-18P Series
18 Position Circular Connector Plug, Male Pins Crimp
