Specification	322320

Color	Orange
Contact Material	Nickel
Features	High Temperature, Serrated Termination
Insulation	Non-Insulated
Insulation Diameter (Max)	0.14 in
Insulation Diameter (Min)	0.105 in
Length - Overall	1.031 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Width - Outer Edges	0.468 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3223 Series

Terminals DG 22-16COM 22-18MIL HR AU R 6

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Contact Finish	Termination	Insulation	Mounting Type	Contact Material	Thickness	Width - Outer Edges	Terminal Type	Stud/Tab Size	Color	Stud/Tab Size	Number of Wire Entries
TE Connectivity AMP Connectors 322373	0.17 in	0.12 in	0.811 in	16 AWG	14 AWG	Serrated Termination	Nickel	Crimp	Non-Insulated	Free Hanging (In-Line)	Copper	0.031 in	0.343 in	Circular	6 Stud
TE Connectivity AMP Connectors 322364	0.14 in	0.105 in	0.624 in	22 AWG	16 AWG	Serrated Termination	Nickel	Crimp	Non-Insulated	Free Hanging (In-Line)	Copper	0.031 in	0.218 in	Circular	6 Stud

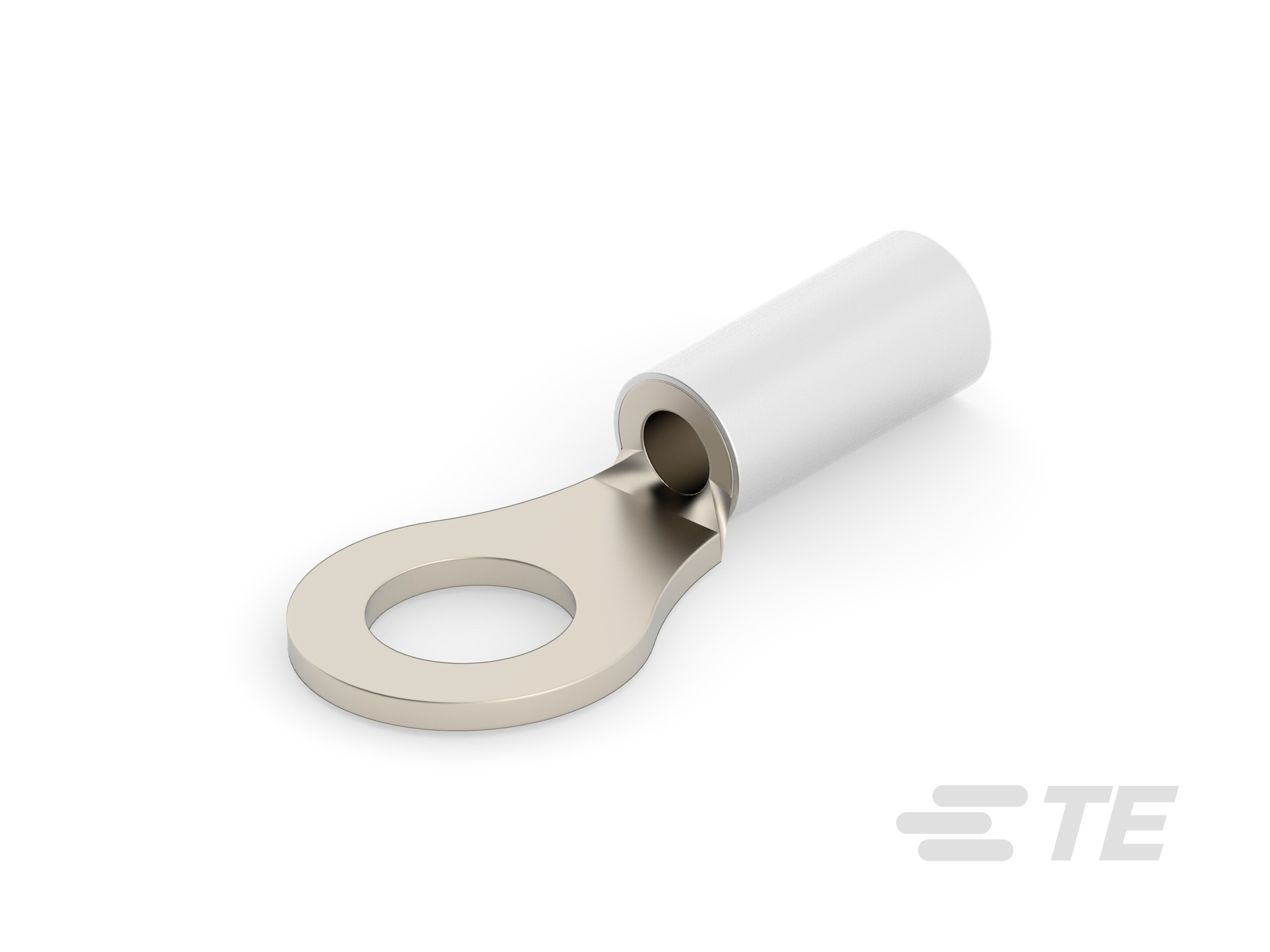

TE Connectivity AMP Connectors 322375	0.17 in	0.12 in	0.811 in	16 AWG	14 AWG	Serrated Termination	Nickel	Crimp	Non-Insulated	Free Hanging (In-Line)	Copper	0.031 in	0.343 in	Circular	10 Stud
TE Connectivity AMP Connectors 322320	0.14 in	0.105 in	1.031 in	22 AWG	16 AWG	High Temperature Serrated Termination		Crimp	Non-Insulated	Free Hanging (In-Line)	Nickel	0.031 in	0.468 in	Circular	0.25 Stud	Orange
TE Connectivity AMP Connectors 322334			0.636 in	16 AWG	14 AWG			Crimp	Non-Insulated	Free Hanging (In-Line)	Nickel	0.03 in	0.343 in	Circular		Orange	M4 M4 Stud
TE Connectivity AMP Connectors 322325				22 AWG	16 AWG	High Temperature Serrated Mating Area		Crimp	Non-Insulated					Butt Splice Individual Openings Inline		Orange		2
TE Connectivity AMP Connectors 322371	0.17 in	0.12 in	0.655 in	16 AWG	14 AWG	Serrated Termination	Nickel	Crimp	Non-Insulated	Free Hanging (In-Line)	Copper	0.031 in	0.25 in	Circular	4 Stud
TE Connectivity AMP Connectors 322367	0.14 in	0.105 in	1.031 in	22 AWG	16 AWG	Serrated Termination	Nickel	Crimp	Non-Insulated	Free Hanging (In-Line)	Copper	0.031 in	0.469 in	Circular	0.25 Stud
TE Connectivity AMP Connectors 322341	0.17 in	0.12 in	1.03 in	16 AWG	14 AWG	Serrated Termination		Crimp	Non-Insulated	Free Hanging (In-Line)	Nickel	0.031 in	0.468 in	Circular	0.25 Stud	Orange

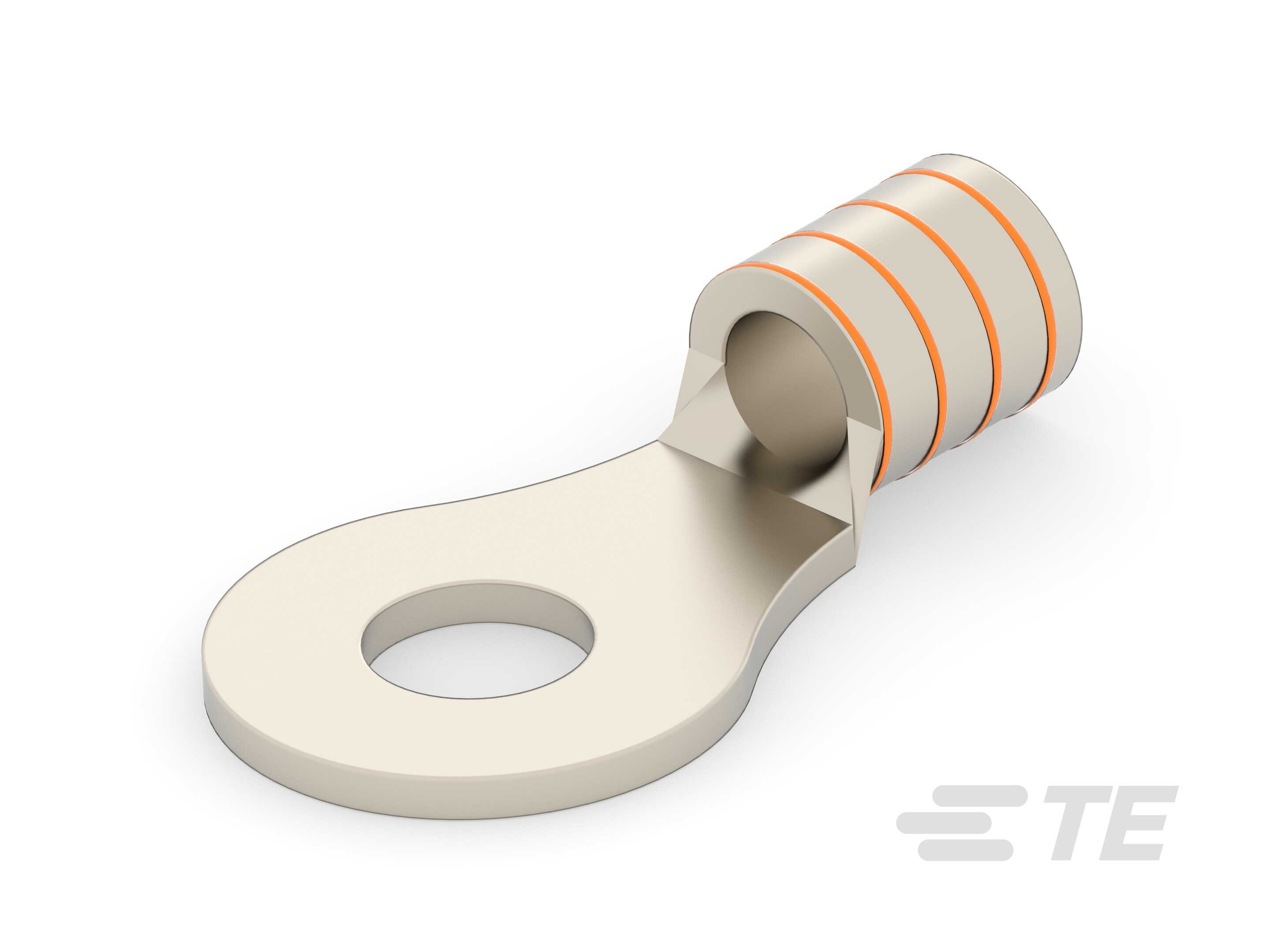

TE Connectivity AMP Connectors 322333			0.636 in	16 AWG	14 AWG	Brazed Seam High Temperature Serrated Termination		Crimp	Non-Insulated	Free Hanging (In-Line)	Nickel	0.03 in	0.343 in	Circular	6 Stud
