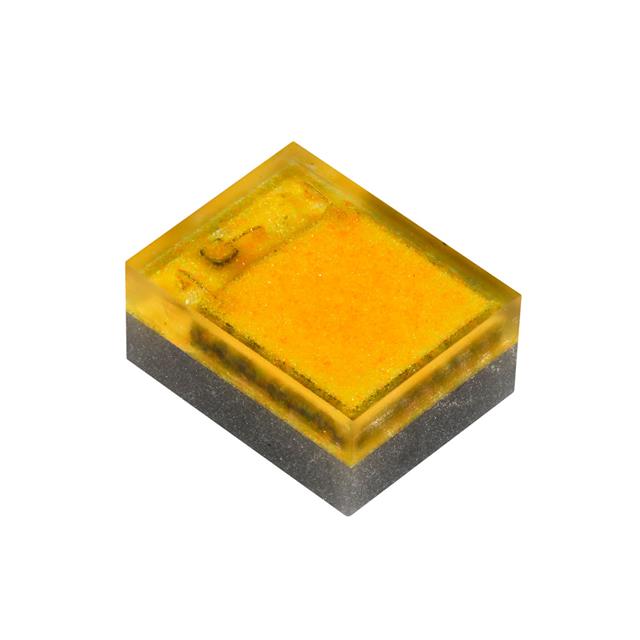

XEGAWT-H0-0000-000-00000BT522E

Active

CreeLED, Inc.

LED XLAMP WARM WHT 2200K 3SMD

XEGAWT-H0-0000-000-00000BT522E

Active

CreeLED, Inc.

LED XLAMP WARM WHT 2200K 3SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

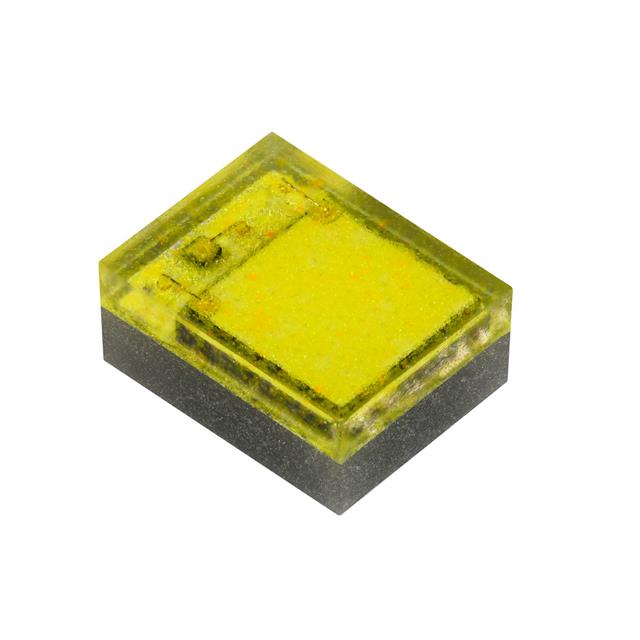

XEGAWT Series

LED Lighting XLamp® XE-G White, Warm 2200K 5-Step MacAdam Ellipse 3V 1A 125° 3-SMD, No Lead

Technical Specifications

Parameters and characteristics for this part

Specification	XEGAWT-H0-0000-000-00000BT522E

CCT (K)	2200 K
CCT Description	5-Step MacAdam Ellipse
Color	White, Warm
CRI (Color Rendering Index)	70
Current - Max	3 A
Current - Test	1 A
Flux (Maximum)	280 lm
Flux (Minimum)	260 lm
Flux (Typical)	270 lm
Height - Seated (Max)	0.044 in
Lumens/Watt	90 lm/W
Mounting Type	Surface Mount
Package / Case	No Lead, 3-SMD
Package Name	3-SMD
Size / Dimension Length	0.081 in
Size / Dimension Width	0.063 in
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	3 V

XEGAWT Series

...

Part	CCT (K)	Color	Height - Seated (Max)	Lumens/Watt	Size / Dimension Length	Size / Dimension Width	CRI (Color Rendering Index)	Current - Max	Flux (Minimum)	Flux (Maximum)	Flux (Typical)	Current - Test	Voltage - Forward (Vf) (Typ)	Package Name	Package / Case	Viewing Angle	Mounting Type	Thermal Resistance of Package	CCT Description
CreeLED, Inc. XEGAWT-H0-0000-000-00000BT30EA	2200 K	Warm White	0.044 in	77 lm/W	0.081 in	0.063 in	70	3 A	220 lm	240 lm	230 lm	1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H2-0000-000-00000BT40EA	2200 K	Warm White	0.044 in	83 lm/W	0.081 in	0.063 in	70	3 A	240 lm	260 lm	250 lm	1 A	3 V	2-SMD	2-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H0-0000-000-00000BT522E	2200 K	Warm White	0.044 in	90 lm/W	0.081 in	0.063 in	70	3 A	260 lm	280 lm	270 lm	1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W	5-Step MacAdam Ellipse
CreeLED, Inc. XEGAWT-H2-0000-000-00000UT657G	5700 K	Cool White	0.044 in	97 lm/W	0.081 in	0.063 in	90	3 A	280 lm	300 lm	290 lm	1 A	3 V	2-SMD	2-SMD No Lead	125 °	Surface Mount	2.4 °C/W	3-Step MacAdam Ellipse
CreeLED, Inc. XEGAWT-H2-0000-000-000000U40E1		White	0.044 in		0.081 in	0.063 in		3 A				1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H2-0000-000-000000U40DT		White	0.044 in		0.081 in	0.063 in		3 A				1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H2-0000-000-00000BT50E8		White	0.044 in		0.081 in	0.063 in	70	3 A				1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H2-0000-000-00000UT440H		White	0.044 in		0.081 in	0.063 in	90	3 A				1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W
CreeLED, Inc. XEGAWT-H2-0000-000-00000US522G	2200 K	Warm White	0.044 in	59 lm/W	0.081 in	0.063 in	90	3 A	172 lm	180 lm	176 lm	1 A	3 V	2-SMD	2-SMD No Lead	125 °	Surface Mount	2.4 °C/W	3-Step MacAdam Ellipse
CreeLED, Inc. XEGAWT-H2-0000-000-00000BU240E		White	0.044 in		0.081 in	0.063 in	70	3 A				1 A	3 V	3-SMD	3-SMD No Lead	125 °	Surface Mount	2.4 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XEGAWT-H0-0000-000-00000BT522E | Datasheet
