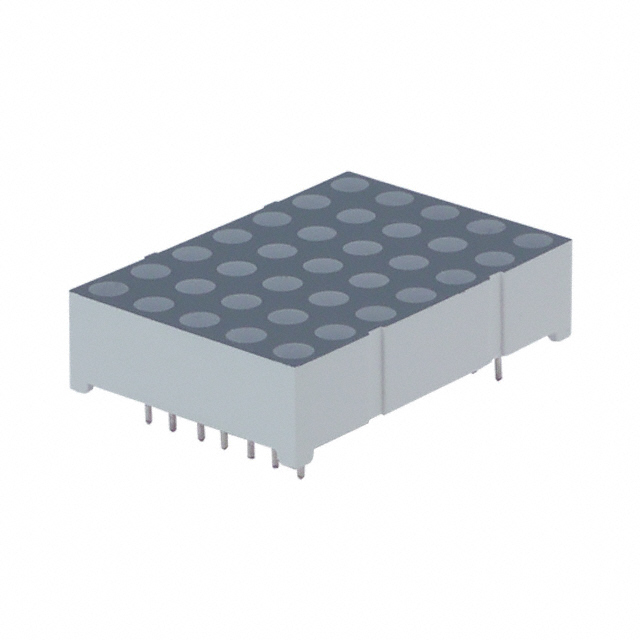

LTP-1457AKY

Active

Diodes Inc

LED MATRIX 5X7 1.2" AMBER-YELLOW

Search across all available documentation for this part.

Active

Diodes Inc

LED MATRIX 5X7 1.2" AMBER-YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	LTP-1457AKY

Color	Amber-Yellow
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Anode Column, Common Cathode Row
Millicandela Rating	3.8 mcd
Size / Dimension [x]	22.9 mm
Size / Dimension [x]	0.9 "
Size / Dimension [y]	31.8 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	0.32 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2.05 V

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Configuration [y]	Configuration [x]	Internal Connection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Color
Diodes Inc LTP-1457AKY	2.05 V	3.8 mcd	7	5	Common Anode Column Common Cathode Row	31.8 mm	22.9 mm	1.25 in	0.9 "	0.32 "	8 mm	Amber-Yellow
Diodes Inc LTP-1457AHR	2 V	4 mcd	7	5	Common Anode Column Common Cathode Row	31.8 mm	22.6 mm	1.25 in	0.89 in	0.32 "	8 mm	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Amber-Yellow 2.05V 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm)
