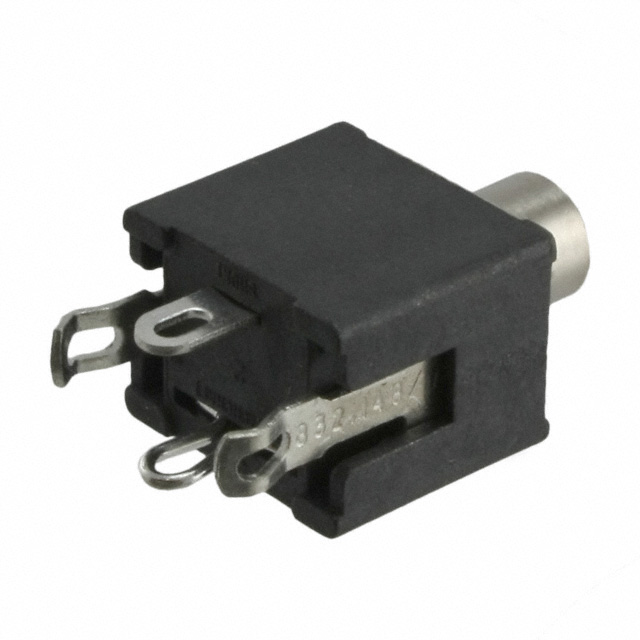

PC142AX

Active

Switchcraft Inc.

CONN JACK MONO 3.55MM PCB

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK MONO 3.55MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PC142AX

Actual Diameter [diameter]	3.68 mm
Actual Diameter [diameter]	0.145 in
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	0.25 A
Gender	Female
Housing Material	Plastic
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	3.55 mm
Industry Recognized Mating Diameter [diameter]	0.14 "
Internal Switch(s)	Single Switch
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)
Voltage - Rated [custom]	48 VDC

CONN JACK MONO 3.55MM PCB

Part	Body Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating	Signal Lines	Includes	Shielding	Number of Positions/Contacts	Gender	Connector Type	Housing Material	Current Rating (Amps)	Body Color	Mounting Type	Voltage - Rated [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Contact Material	Internal Switch(s)
Switchcraft Inc. PC142AX	Copper Alloy	3.68 mm	0.145 in	Tin	Mono	Connector, Nut, Washer	Unshielded	2 Conductors, 3 Conductors	Female	Phone Jack	Plastic	0.25 A	Black, Silver	Through Hole	48 VDC	3.55 mm	0.14 "	Solder Eyelet(s)	Copper Alloy	Single Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.55mm (0.14", Tini Plug) Phone Jack Mono Connector Solder Eyelet(s)
