745-130-560-206

Active

EDAC Inc.

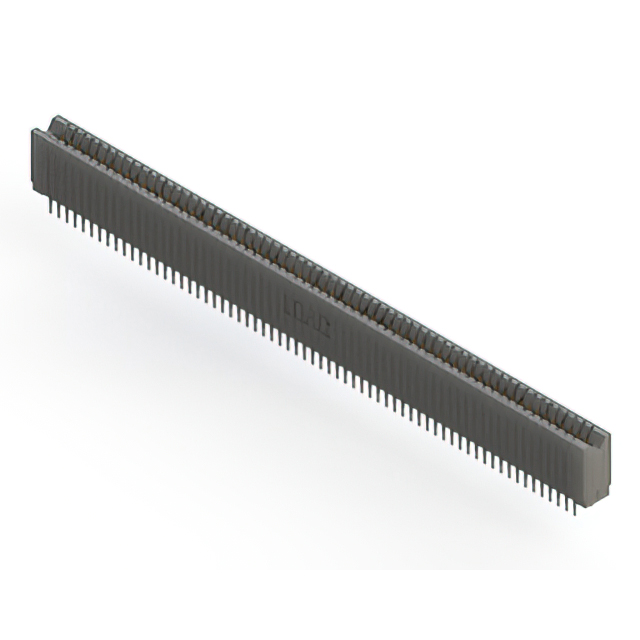

CARD EDGE CONNECTOR, 130 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, PRESS FIT TERMINAL, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745-130-560-206

Active

EDAC Inc.

CARD EDGE CONNECTOR, 130 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, PRESS FIT TERMINAL, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-130-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	130
Number of Positions/Bay/Row [custom]	65
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-130 Series

Part	Contact Type	Contact Finish	Contact Material	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Read Out	Number of Rows	Number of Positions/Bay/Row [custom]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Material - Insulation	Card Type	Termination Rows
EDAC Inc. 745-130-560-206	Cantilever Make Before Break	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-560-201	Cantilever Make Before Break	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-525-206	Cantilever	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-522-206	Cantilever	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-520-206	Cantilever	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-522-201	Cantilever	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2
EDAC Inc. 745-130-540-206	Cantilever	Gold	Copper Alloy	130	2.54 mm	0.1 in	0.76 Ám	30 Áin	Black	Through Hole	Dual	2	65	Press-Fit Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female	Polyester Thermoplastic	Non Specified - Dual Edge	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.77

Description

General part information

745-130 Series

130 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
