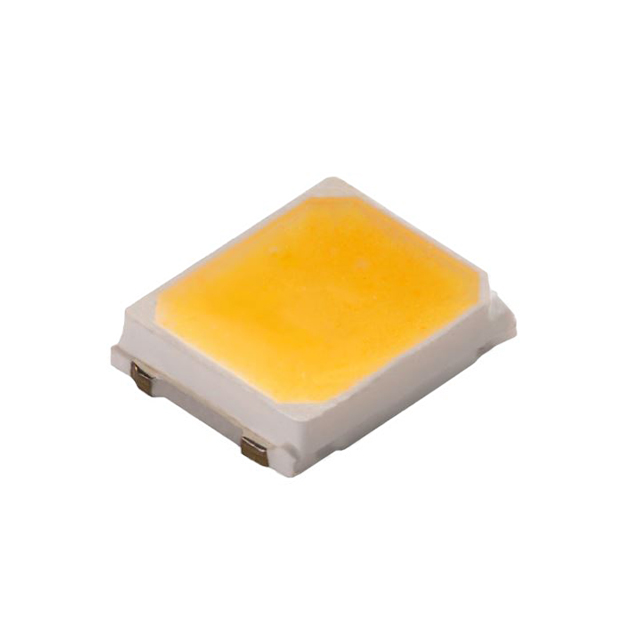

JE2835AWT-00-0000-0B0A0HG635E

Obsolete

Cree LED

LED J WARM WHT 3500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

JE2835AWT-00-0000-0B0A0HG635E

Obsolete

Cree LED

LED J WARM WHT 3500K SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JE2835AWT-00-0000-0B0A0HG635E

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	200 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	66 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	140 lm/W
Mounting Type	Surface Mount
Package / Case	1113 (2835 Metric)
Size / Dimension [x]	2.8 mm
Size / Dimension [x]	0.11 in
Size / Dimension [y]	0.138 in
Size / Dimension [y]	3.5 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	32 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.15 V

JE2835AWT Series

Part	Current - Max [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Supplier Device Package	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Flux @ 25°C, Current - Test	Mounting Type	Lumens/Watt @ Current - Test	Color	CCT (K)	Size / Dimension [y]	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test	Package / Case
Cree LED JE2835AWT-00-0000-000A0BH645E	240 mA	120 °	3 V	150 mA	SMD	70	0.035 "	0.9 mm	20 °C/W	1113 (2835 Metric)	0.11 in	2.8 mm	0.138 "	3.5 mm	79 lm	Surface Mount	176 lm/W	Neutral White
Cree LED JE2835AWT-00-0000-000A0UF965E	240 mA	120 °	3 V	150 mA	SMD	90	0.035 "	0.9 mm	20 °C/W	1113 (2835 Metric)	0.11 in	2.8 mm	0.138 "	3.5 mm	64 lm	Surface Mount	142 lm/W	Cool White	6500 K
Cree LED JE2835AWT-00-0000-0B0A0HG635E	200 mA	120 °	3.15 V	150 mA	SMD	80	0.035 "	0.9 mm		1113 (2835 Metric)	0.138 in		0.11 in	2.8 mm	66 lm	Surface Mount	140 lm/W	Warm White	3500 K	3.5 mm	32 °C/W
Cree LED JE2835AWT-00-0000-0B0A0BG865E	200 mA	120 °	3.15 V	150 mA	SMD	70	0.035 "	0.9 mm		1113 (2835 Metric)	0.138 in		0.11 in	2.8 mm	71 lm	Surface Mount	150 lm/W	Cool White	6500 K	3.5 mm	32 °C/W
Cree LED JE2835AWT-R-H30GA0000-N0000001	240 mA	120 °	2.95 V	150 mA	1411	80	0.031 "	0.8 mm	20 °C/W	1411	0.11 in	2.8 mm	0.138 "	3.5 mm	71 lm	Surface Mount	160 lm/W	Warm White	3000 K			63 lm	3528 Metric
Cree LED JE2835AWT-00-0000-0B0A0UF730E	200 mA	120 °	3.15 V	150 mA	SMD	90	0.035 "	0.9 mm		1113 (2835 Metric)	0.138 in		0.11 in	2.8 mm	55 lm	Surface Mount	116 lm/W	Warm White		3.5 mm	32 °C/W
Cree LED JE2835AWT-R-H40GA0000-N0000001	240 mA	120 °	2.95 V	150 mA	1411	80	0.031 "	0.8 mm	20 °C/W	1411	0.11 in	2.8 mm	0.138 "	3.5 mm		Surface Mount		Neutral White	4000 K			66 lm	3528 Metric
Cree LED JE2835AWT-00-0000-000A0HG965E	240 mA	120 °	3 V	150 mA	SMD	80	0.035 "	0.9 mm	20 °C/W	1113 (2835 Metric)	0.11 in	2.8 mm	0.138 "	3.5 mm	75 lm	Surface Mount		Cool White	6500 K
Cree LED JE2835AWT-00-0000-000A0UF950E	240 mA	120 °	3 V	150 mA	SMD	90	0.035 "	0.9 mm	20 °C/W	1113 (2835 Metric)	0.11 in	2.8 mm	0.138 "	3.5 mm	64 lm	Surface Mount	142 lm/W	Cool White	5000 K
Cree LED JE2835AWT-00-0000-000A0ZF627E	240 mA	120 °	3 V	150 mA	SMD	95	0.031 "	0.8 mm	20 °C/W	1113 (2835 Metric)	0.138 in		0.11 in	2.8 mm		Surface Mount	111 lm/W	Warm White	2700 K	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JE2835AWT Series

LED Lighting J White, Warm 3500K 3.15V 150mA 120° 1113 (2835 Metric)
