Q-2C04T0005002M
ActiveAmphenol Custom Cable
COAX CBL N-TYPE TO TNC 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C04T0005002M
ActiveAmphenol Custom Cable
COAX CBL N-TYPE TO TNC 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C04T0005002M |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 95.92 | |
| 25 | $ 94.05 | |||
| 50 | $ 92.19 | |||
| 100 | $ 90.33 | |||
| 250 | $ 88.46 | |||
Description
General part information
Q-2C04T0 Series

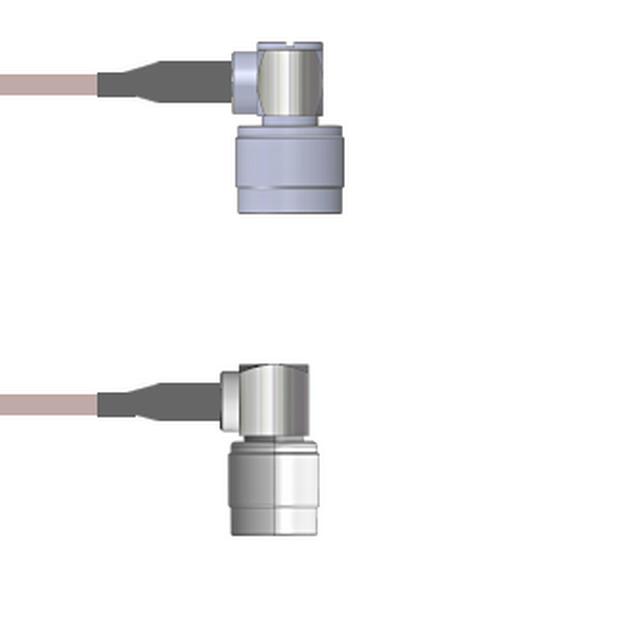

Cable Assembly Coaxial N-Type to TNC RG-316 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
