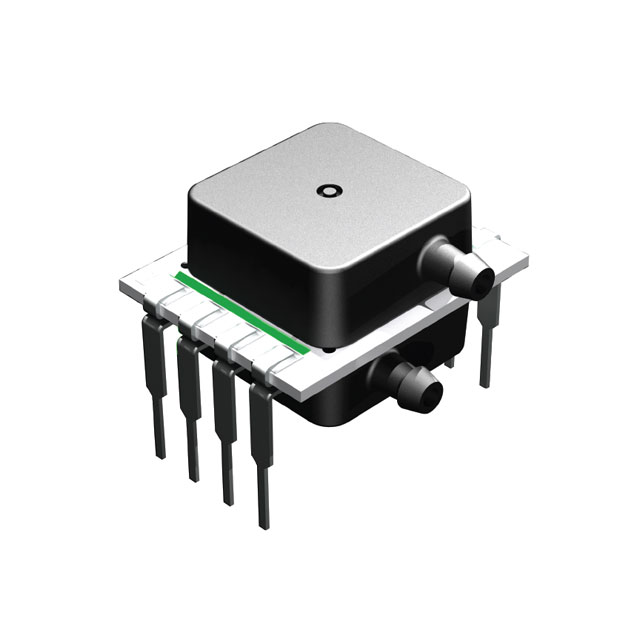

DLLR-L30D-E1BD-C-NAV7
ActiveAmphenol All Sensors Corporation
SENSOR 1.08PSID 0.09" 17BIT 8DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLLR-L30D-E1BD-C-NAV7
ActiveAmphenol All Sensors Corporation
SENSOR 1.08PSID 0.09" 17BIT 8DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLLR-L30D-E1BD-C-NAV7 |
|---|---|
| Accuracy | 0.1 % |
| Features | Temperature Compensated |
| Maximum Pressure | 25 kPa |
| Maximum Pressure | 3.63 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 7.47 kPa |
| Operating Pressure | 1.08 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 17b |
| Output Type | I2C, SPI |
| Package / Case | 0.62 in |
| Package / Case | 15.75 mm |
| Package / Case | Dual Ports, 8-DIP, Same Side |
| Port Size | Dual, Tube, Male |
| Port Size | 2.24 mm |
| Port Size | 0.09 " |
| Port Style | Barbed |
| Pressure Type | Differential |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.68 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 73.28 | |
| 5 | $ 64.21 | |||
Description
General part information
DLLR-L30D Series
Pressure Sensor ±1.08PSI (±7.47kPa) Differential Male - 0.09" (2.24mm) Tube, Dual 17b 8-DIP (0.620", 15.75mm), Dual Ports, Same Side
