10-2H25.2049
ActiveEAO

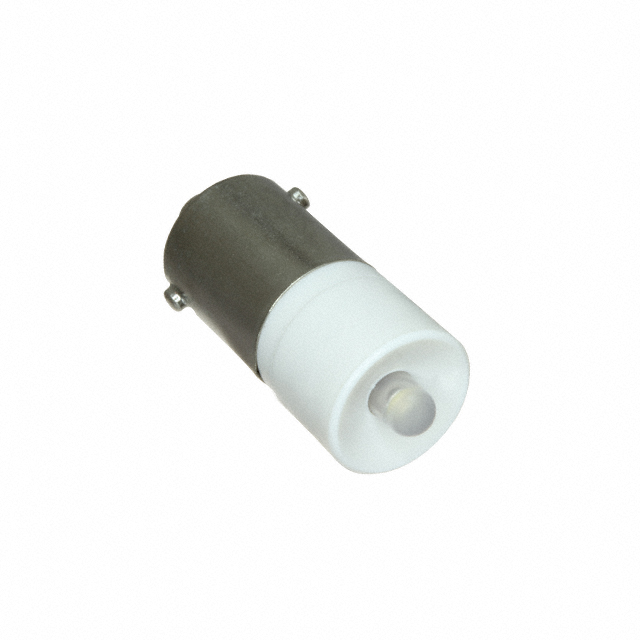

CONFIG SWITCH LAMP LED WHT 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2H25.2049
ActiveEAO
CONFIG SWITCH LAMP LED WHT 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-2H25.2049 | 10-2H25 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | 10 | 10 |
| (Select First, Then Apply Filters) Compatible Series | EAO | EAO |
| Applications | - | General Purpose Lighting |
| Base Type | - | Miniature Bayonet (BA9S) |
| Can Replace Lamps | - | Multiple Miniature Bayonet Lamps |
| Color | White | White, Red, Blue, Green |
| Configuration | - | Single |
| Millicandela Rating | - | 200 - 300 mcd |
| Size / Dimension | - | 0.394 in |
| Size / Dimension | - | 1.142 inches |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 29 mm |
| Type | LED | LED |
| Voltage | 230 V | 230 V |
| Voltage - Forward (Vf) (Typ) | - | 230 VAC |
| Wavelength | - | 470 - 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.17 | |
| 10 | $ 21.95 | |||
| 25 | $ 20.96 | |||
| 50 | $ 19.85 | |||
| 100 | $ 19.11 | |||
| 250 | $ 17.88 | |||
| 500 | $ 15.26 | |||
10-2H25 Series
CONFIG SWITCH LAMP LED WHT 230V
| Part | Type | Voltage | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series | Color | Configuration | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Millicandela Rating | Base Type | Can Replace Lamps | Voltage - Forward (Vf) (Typ) | Wavelength | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 10-2H25.2049 | LED | 230 V | 10 | EAO | White | |||||||||||
EAO 10-2H25.2042 | ||||||||||||||||
EAO 10-2H25.2042 | LED | 230 V | 10 | EAO | Red | |||||||||||
EAO 10-2H25.2046 | Blue | Single | 0.394 in | 1.142 inches | 10 mm | 29 mm | 200 mcd | Miniature Bayonet (BA9S) | Multiple Miniature Bayonet Lamps | 230 VAC | 470 nm | General Purpose Lighting | ||||
EAO 10-2H25.2045 | Green | Single | 0.394 in | 1.142 inches | 10 mm | 29 mm | 300 mcd | Miniature Bayonet (BA9S) | Multiple Miniature Bayonet Lamps | 230 VAC | 525 nm | General Purpose Lighting |
Description
General part information
10-2H25 Series
Configurable Switch Lamp LED White 230V
Documents
Technical documentation and resources
