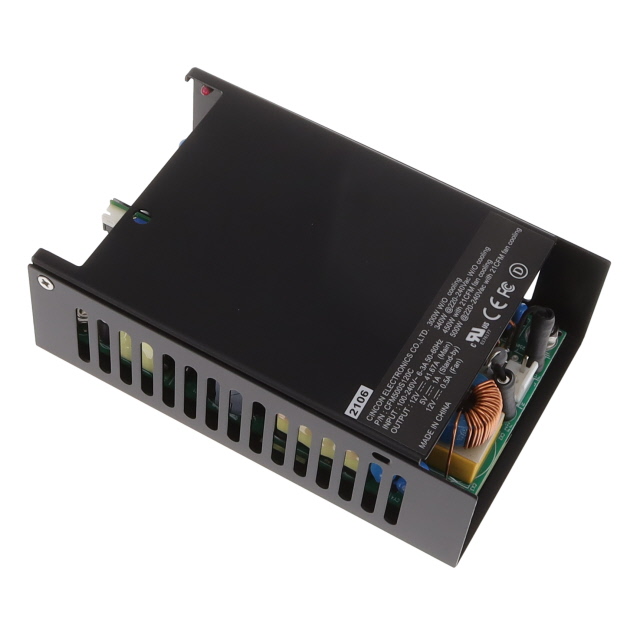

Specification	CFM500S120C

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE, D-Mark, FCC
Current - Output 1	27.5 A
Efficiency	91.5 %
Features	Baseplate, PFC, Remote On/Off, Adjustable Output, Universal Input, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	330 W, 500 W
Size / Dimension Height	1.67 in
Size / Dimension Length	5.35 in
Size / Dimension Width	3.43 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

CFM500 Series

Part	Efficiency	Standard Number	Voltage - Isolation	Type	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Power (Watts)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output 1	Applications	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Features	Number of Outputs	Mounting Type	Voltage - Output 1
Cincon Electronics Co. LTD CFM500M120C	91.5 %	60335-1 60601-1	4000 Vpk	Enclosed	85 °C	-30 °C	ANSI/AAMI ES IEC	250 W 500 W	85 VAC	264 V	20.83 A	Household Appliances Medical	5.35 in	3.43 in	1.67 in	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	12 V
Cincon Electronics Co. LTD CFM500S120C	91.5 %	60335-1 62368-1	4000 Vpk	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	330 W 500 W	80 V	264 V	27.5 A	Household Appliances ITE (Commercial)	5.35 in	3.43 in	1.67 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	12 V
Cincon Electronics Co. LTD CFM500S180C	92.5 %	60335-1 62368-1	4000 Vpk	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	330 W 500 W	80 V	264 V	18.33 A	Household Appliances ITE (Commercial)	5.35 in	3.43 in	1.67 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	18 V
Cincon Electronics Co. LTD CFM500M180C		60335-1 60601-1	4000 Vpk	Enclosed	85 °C	-30 °C	ANSI/AAMI ES IEC		85 VAC	264 V		Household Appliances Medical	5.35 in	3.43 in	1.67 in	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	18 V
Cincon Electronics Co. LTD CFM500S120	91.5 %	60335-1 62368-1	4000 Vpk	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	300 W 500 W	80 V	264 V	25 A	Household Appliances ITE (Commercial)	5 in	3 in	1.54 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	12 V
Cincon Electronics Co. LTD CFM500S240C	93 %	60335-1 62368-1	4000 Vpk	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	410 W 500 W	80 V	264 V	17.08 A	Household Appliances ITE (Commercial)	5.35 in	3.43 in	1.67 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	24 V
Cincon Electronics Co. LTD CFM500M180		60335-1 60601-1	4000 Vpk	Open Frame	85 °C	-30 °C	ANSI/AAMI ES IEC		85 VAC	264 V		Household Appliances Medical	5 in	3 in	1.54 in	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	18 V
Cincon Electronics Co. LTD CFM500M240	93 %	60335-1 60601-1	4000 Vpk	Open Frame	85 °C	-30 °C	ANSI/AAMI ES IEC	320 W 500 W	85 VAC	264 V	13.33 A	Household Appliances Medical	5 in	3 in	1.54 in	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	24 V
Cincon Electronics Co. LTD CFM500S480	94 %	60335-1 62368-1	4000 Vpk	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	380 W 500 W	80 V	264 V	7.92 A	Household Appliances ITE (Commercial)	5 in	3 in	1.54 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	48 V
Cincon Electronics Co. LTD CFM500S240	93 %	60335-1 62368-1	4000 Vpk	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	380 W 500 W	80 V	264 V	15.83 A	Household Appliances ITE (Commercial)	5 in	3 in	1.54 in	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	24 V
