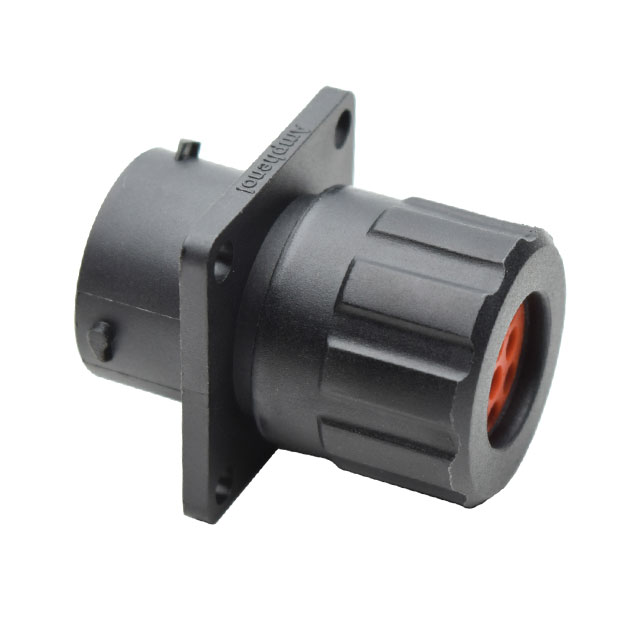

RTS012N10SHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 10POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS012N10SHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 10POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS012N10SHEC03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS012 Series
| Part | Shielding | Contact Type | Orientation | Shell Size - Insert | Includes | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Type | Connector Type | Ingress Protection | Contact Shape | Note | Fastening Type | Number of Positions | Material Flammability Rating | Housing Color | Contact Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 12-8 | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Female Sockets | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 8 | UL94 V-0 | Black | 16 | |
Amphenol Sine Systems Corp | Unshielded | Crimp | N | Thermoplastic | 125 °C | -40 °C | Flange | For Female Sockets | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 10 | UL94 V-0 | Black | 20 | Backshell | ||
Amphenol Sine Systems Corp | Unshielded | Crimp | N | Thermoplastic | 125 °C | -40 °C | Flange | For Male Pins | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 10 | UL94 V-0 | Black | 20 | Backshell | ||
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Male Pins | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 10 | UL94 V-0 | Black | 20 | ||
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 12-4 | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Female Sockets | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 4 | UL94 V-0 | Black | 16 | |
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 12-2 | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Male Pins | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 4 | UL94 V-0 | Black | 2.5 mm 20 | |
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 12-2 | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Female Sockets | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | 4 | UL94 V-0 | Black | 2.5 mm 20 | |
Amphenol Sine Systems Corp | Unshielded | Crimp | N | 12-3 | 1 Connector 1 Gasket | Thermoplastic | 125 °C | -40 °C | Flange | For Female Sockets | Receptacle Housing | IP67 IP69K | Circular | Contacts Not Included | Bayonet Lock | UL94 V-0 | Black | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 10.35 | |
Description
General part information
RTS012 Series
10 Position Circular Connector Receptacle Housing Panel Mount Backshell
